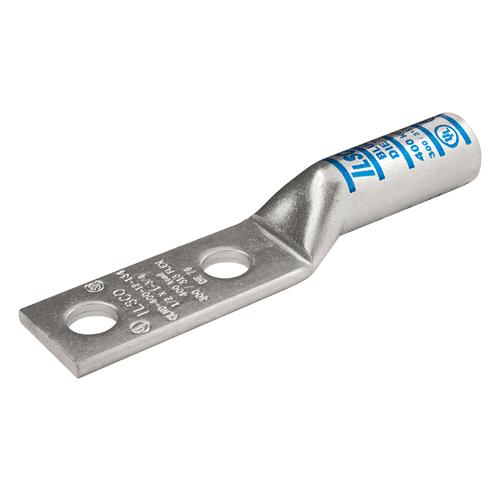

ILSCO® SureCrimp® CLND-400-12-134 CLND 2-Hole Lug Compression Connector, 4/0 AWG to 400 kcmil Flex Copper Conductor, Die Code: ILD-76, 1/2 in Stud, Tin Plated Copper
Sku #78366964502
MFG #CLND-400-12-134
Attributes
| Type: | 2-Hole |
| Conductor Type: | Flex Copper |
| Die Code: | ILD-76 |
| Series: | CLND |
| Conductor Size: | 4/0 AWG to 400 kcmil |
| Voltage Rating: | 600 to 35 kV V AC |
- Manufactured from high strength seamless copper tubing, electro-tin plated
- Color coded
- Offers maximum conductivity and excellent crimping characteristics
- Provides low contact resistance
- For easy conductor insertion
- Identifies the proper compression die
- Application versatility
- Reduces inventory requirements
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- 300 G, H, I, K, M flexible 313.1 DLO alternate conductor size
- 4/0 AWG to 400 kcmil expanded conductor size
- Without sight hole
- Electro-tin plated
- Long barrel length with chamfered entry
- Terminating Connector, Grounding and Bonding Applications
- NEBS Level 3|UL 453G|UL 486A-486B File No. E6207|UL 467|CSA File No. LR29601|ECCN EAR99
