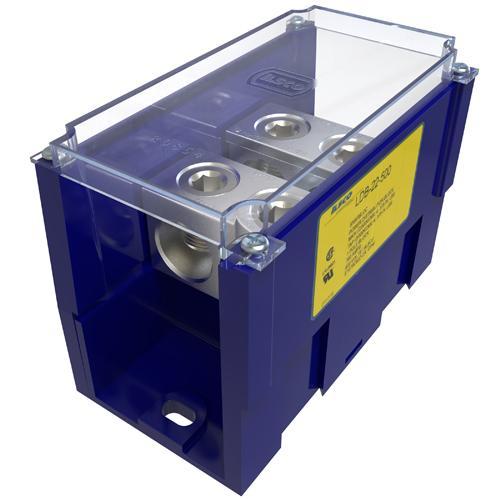

ILSCO® Snapbloc® LDB-22-500 Type LDB Dual Rated Mechanical Power Distribution Block With Clear Cover, 600 V AC, 760 A, 1 Pole, 4 AWG to 500 kcmil Wire, Aluminum Alloy
Sku #78366959520
MFG #LDB-22-500
Attributes
| Type: | Type LDB Dual Rated Mechanical |
| Amperage Rating: | 760 A |
| Primary Connections/Pole: | 2 |
| Voltage Rating: | 600 V AC |
| Number of Poles: | 1 |
| Secondary Connection/Pole: | 2 |
- CSA File No. LR29601|UL 1059|UL 1953 File No. E84782/E112158|ECCN EAR99|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Modular design
- Easy to assemble
- Multiple conductor capability
- Simplifies stocking, combines any number of blocks with multiple conductor ranges into the specific configuration required for the job
- Unique locking feature allows individual blocks to be combined quickly without special tools
- Ensures reliability
- Permits visual inspection
- Aluminum connector
- 3/8 in hex primary, 3/8 in hex secondary
- (2) box lug primary, (2) box lug secondary
- 4 AWG to 500 kcmil primary and secondary wire size
- Lexan® insulating base
- UL assigned short circuit current rating
- Manufactured from high strength 6061-T6 aluminum alloy
- LDA, LDAU are added to LDB, LDBU to obtain a multi-pole block
- Convert LDA,LDAU to LDB, LDBU by adding LDS-1 side plate
- Tap Connector Applications
