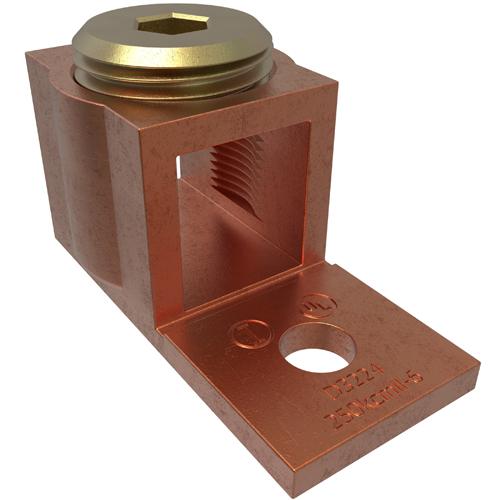

ILSCO® ClearChoice® LY-250-S 1-Conductor Mechanical Lug, 6 AWG to 250 kcmil Copper Conductor, 1/4 in Stud, 1 Bolt Hole, Copper
Sku #78366959455
MFG #LY-250-S
Attributes
| Type: | 1-Conductor |
| Conductor Type: | Copper |
| Stud Size: | 1/4 in |
| Series: | LY Series |
| Conductor Size: | 6 AWG to 250 kcmil |
| Number of Bolt Holes: | 1 |
- CSA File No. LR-29601|UL 486A/B/453G|E6207|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- For terminating connector
- Manufactured from electrolytic copper tubing and strip stock
- Compact design
- Range taking for reduced inventories and flexibility
- Re-usable
- Saves space and reduces installation time
- Contact factory for listed wire combinations
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- cUL listed combinations (2) 4/0 AWG stranded or (2) AWG 3/0 stranded or (2) 2/0 AWG stranded and (2) 1/0 AWG stranded conductor size
