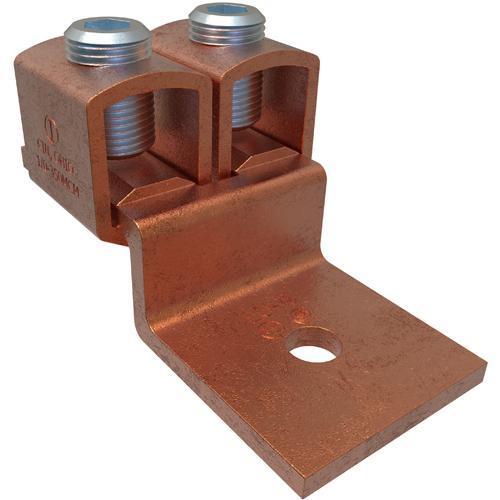

ILSCO® ClearChoice® LU-4 2-Conductor 2-Port Mechanical Lug, 1/0 AWG to 350 kcmil Copper Conductor, 3/8 in Stud, 1 Bolt Holes, Copper
Sku #78366959295
MFG #LU-4
Attributes
| Type: | 2-Conductor 2-Port |
| Conductor Type: | Copper |
| Stud Size: | 3/8 in |
| Series: | LU Series |
| Conductor Size: | 1/0 AWG to 350 kcmil |
| Number of Bolt Holes: | 1 |
- Manufactured from electrolytic copper tubing and strip stock
- Compact design saves space and reduces installation time
- Range taking for reduced inventories and flexibility
- Re-usable
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- V-bottom collar
- CSA File No. LR-29601|UL 486A/B/453G|E6207
- For terminating connector
