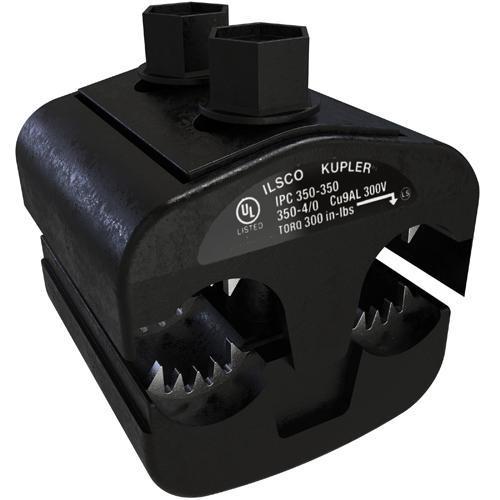

ILSCO® KUP-L-Tap® IPC-350-350-B Type IPC Dual Rated Insulation Piercing Connector, 4/0 AWG to 350 kcmil Aluminum/Copper Conductor, 5/8 in, Copper
Sku #78366953296
MFG #IPC-350-350-B
Attributes
| Type: | Type IPC Dual Rated |
| Conductor Size: | 4/0 AWG to 350 kcmil |
| Voltage Rating: | 300 V AC |
| Conductor Type: | Aluminum/Copper |
| Bolt Size: | 5/8 in |
| Specifications: | 25 ft-lb Torque, 350 A Copper, 280 A Aluminum |
- CSA LR-29601|UL 486A-B/453G/E6207|PROP65:Cancer and Reproductive Harm - www.P65warnings.ca.gov
- Body is molded from tough, resilient glass filled nylon provides high degree of breakage resistance and long dependable use
- Compact design saves space
- Tin plated copper contact teeth easily penetrates most types of insulation
- Insulation piercing, no need to strip the conductor which saves installation time
- Perforated end tabs break out easily by hand
- Pre-filled with silicone lubricant prevents oxidation and moisture from entering the contact area
- Versatile - can be used as a splice or tap connector
- Increased safety - contains no external energized parts, can be installed "hot" on energized conductors providing tap conductor is not under load
- Horizontal line grid provides a visual guide for proper installation of conductors
- For use with class B or C stranded conductor
- 4/0 AWG to 350 kcmil tap/secondary conductor size
- 480 VAC grounded Y-system
