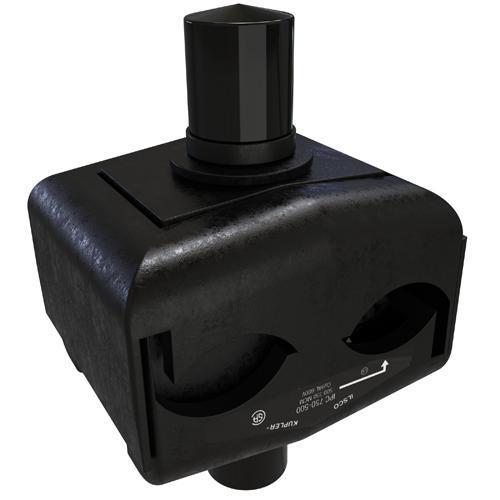

ILSCO® KUP-L-Tap® IPC-750-500 Type IPC Dual Rated Insulation Piercing Connector, 500 to 750 kcmil Aluminum/Copper Conductor, 7/8 in, Copper
Sku #78366953282
MFG #IPC-750-500
Attributes
| Type: | Type IPC Dual Rated |
| Conductor Size: | 500 to 750 kcmil |
| Voltage Rating: | 600 V AC |
| Conductor Type: | Aluminum/Copper |
| Bolt Size: | 7/8 in |
| Specifications: | 75 ft-lb Torque, 430 A Copper, 350 A Aluminum |
- Body is molded from tough, resilient glass filled nylon provides high degree of breakage resistance and long dependable use
- Compact design saves space
- Tin plated copper contact teeth easily penetrates most types of insulation
- Insulation piercing, no need to strip the conductor which saves installation time
- Perforated end tabs break out easily by hand
- Pre-filled with silicone lubricant prevents oxidation and moisture from entering the contact area
- Versatile - can be used as a splice or tap connector
- Increased safety contains no external energized parts, can be installed "hot" on energized conductors providing tap conductor is not under load
- Horizontal line grid provides a visual guide for proper installation of conductors
- For use with class B or C stranded conductor
- Dual-rated for aluminum and copper conductor
- Removable end tabs
- 350 to 500 kcmil tap/secondary conductor size
- CSA File No. LR29601|UL 486A-B|UL 453G File No. E6207|ECCN EAR99|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
