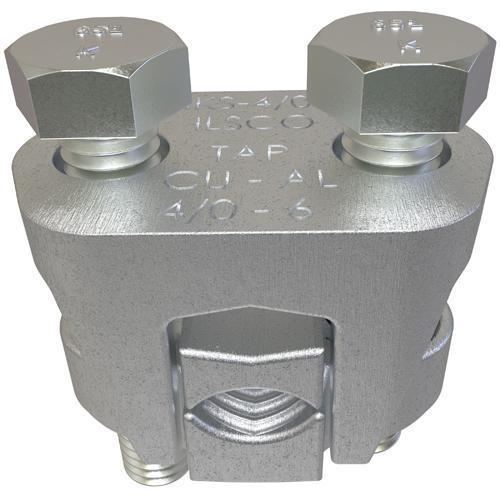

ILSCO® ClearChoice® IKS-4/0 Type IKS Split Two Bolt Connector, 1/0 to 4/0 AWG Copper Conductor, Copper Alloy
Sku #78366949000
MFG #IKS-4/0
Attributes
| Type: | Type IKS Split |
| Conductor Size: | 1/0 to 4/0 AWG |
| Voltage Rating: | 2000 V AC |
| Conductor Type: | Copper |
| Tap Size: | 6 to 4/0 AWG |
| Temperature Rating: | 90 deg C |
- Manufactured from high strength copper alloy provides maximum conductivity and high breakage resistance
- (2) bolt design allows maximum pressure to be applied directly to the conductor strands
- Longer peened bolt permits a swivel action for easier installation
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- For copper conductor only
- Electro-tin plated provides low contact resistance
- Serrated spacer bar makes a secure connection
- UL 486A/486B/453G File No. E6207|PROP65: it is not known to contain any chemicals associated with this regulation
