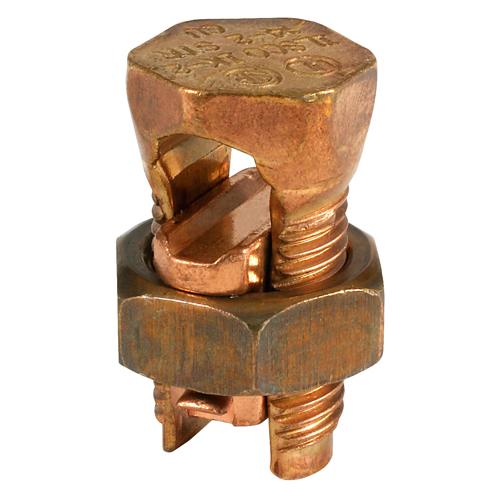

ILSCO® ClearChoice® IK-6-B2 Type IK Split Bolt, 10 to 6 AWG Copper Conductor, Copper Alloy
Sku #78366947005
MFG #IK-6-B2
Attributes
| Type: | Type IK |
| Conductor Size: | 10 to 6 AWG |
| Specifications: | 165 in-lb Recommended Torque, 0.102 to 0.162 in Wire Dia |
| Conductor Type: | Copper |
| Voltage Rating: | 2000 V AC |
| Temperature Rating: | 90 deg C |
- Manufactured from high strength copper alloy provides maximum conductivity and high breakage resistance
- Precision tooled threads allows maximum torque to be applied
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- 10 to 6 AWG solid for equal main and tap
- 16 AWG solid for minimum tap with maximum run
- CSA File No. 701570|UL 486A/B/460C/File No. E6207|PROP65:cancer and reproductive harm - www.P65Warnings.ca.gov
