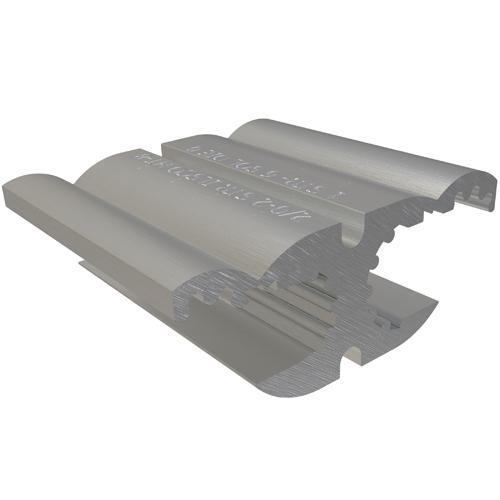

ILSCO® ClearChoice® HT-8 Type HT Dual Rated Serrated Compression H-Tap Connector, H with C Groove, 2 to 2/0 AWG Main/Run, 6 to 1 AWG Tap, Aluminum
Sku #78366946122
MFG #HT-8
Attributes
| Type: | Type HT Dual Rated Serrated |
| Main/Run Size: | 2 to 2/0 AWG |
| Voltage Rating: | 600 V AC |
| Shape: | H with C Groove |
| Tap Size: | 6 to 1 AWG |
| Conductor Type: | ACSR/Solid/Stranded Aluminum/Copper |
- Manufactured from high strength aluminum alloy provides maximum conductivity and excellent crimping characteristics
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Pre-filled with oxide inhibitor provides corrosion resistance
- Dual rated for aluminum and copper conductor
- Serrated interior assures positive mating with cable strands when compressed
- Application versatility
- Installed with industry standard "O" and "D" dies provides convenient die selection
- Contact factory if using ACSR (compact)
- 6 to 1 AWG solid, 6 to 2 AWG ACSR tap conductor size
- 1 to 2/0 AWG, 1 to 3/0 AWG solid, 3 to 1/0 AWG ACSR main conductor size
- For ND-58 and ILC-15 crimping tools
- CSA AP-5465|PROP65: it is not known to contain any chemicals associated with this regulation
