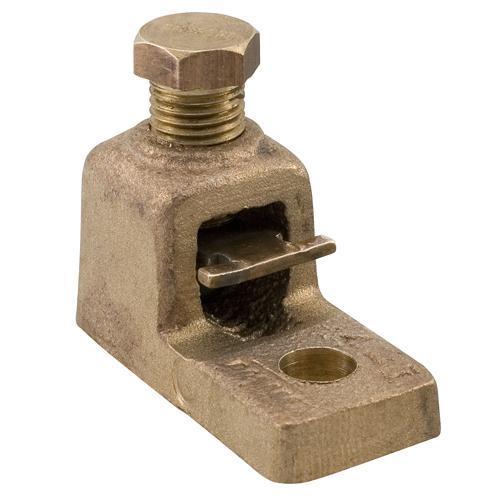

ILSCO® ClearChoice® HL4-1 Type HL Multi-Conductor Mechanical Lug, 8 to 4 AWG Solid/Stranded Copper Conductor, 1/4 in Stud, 1 Bolt Hole, Cast Bronze
Sku #78366946010
MFG #HL4-1
Attributes
| Type: | Type HL Multi-Conductor |
| Conductor Size: | 8 to 4 AWG |
| Number of Bolt Holes: | 1 |
| Conductor Type: | Solid/Stranded Copper |
| Stud Size: | 1/4 in |
| Tongue Size: | 5/8 in L x 9/16 in W x 3/16 in THK |
- For terminating connector
- Re-usable
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Range taking for reduced inventories and flexibility and permits inventories to be kept to a minimum
- Manufactured from high strength cast bronze provides maximum conductivity and a high degree of breakage resistance
- Provides efficient use and flexibility in the field
- Compact design saves space and reduces installation time
- Ensures reliability for copper conductor
- Pressure pad/saddle provides positive grip and low contact resistance
- Requires less space than two individual connectors
- 1-stud
- Application versatility
- For copper conductor only
- 9/32 in Dia mounting hole
- UL 486A-B/8M24/E158587|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
