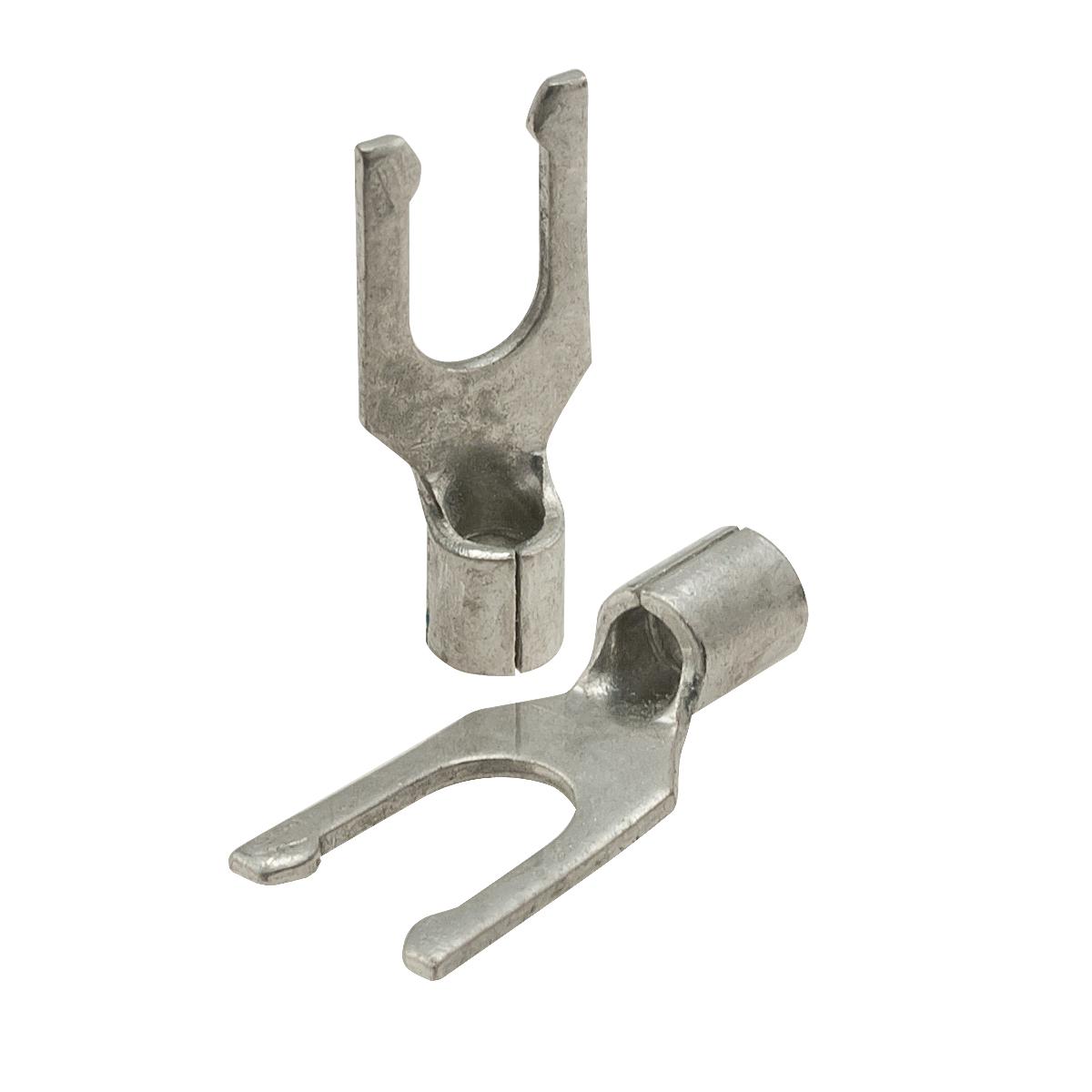

ILSCO® ClearChoice® 44422-B20 ILSB Non-Insulated Fork Terminal, 12 to 10 AWG, #10 Stud, Copper
Sku #78366944313
MFG #44422-B20
Attributes
| Type: | Non-Insulated |
| Conductor Size: | 12 to 10 AWG |
| Stud Size: | #10 |
| Series: | ILSB |
| Voltage Rating: | 600 V AC |
| Overall Length: | 0.73 in |
- For terminating connector
- UL E158587|CSA Certified
- Insulated rings are color coded
- Manufactured from high strength copper alloy and electro-tin plated
- Silver solder brazed seam on all non-insulated rings and forks
- UL listed and CSA certified for 600 VAC with the exception of high temperature rings, flag terminals and all uninsulated terminals
- High temperature ring terminals are nickel plated
- For copper conductor only
- Non-insulated fork connector
- Provides maximum conductivity
- Provides low contact resistance
- May be crimped anywhere and will not split open, even under extreme operating stresses
- Ensures reliability for copper conductor
