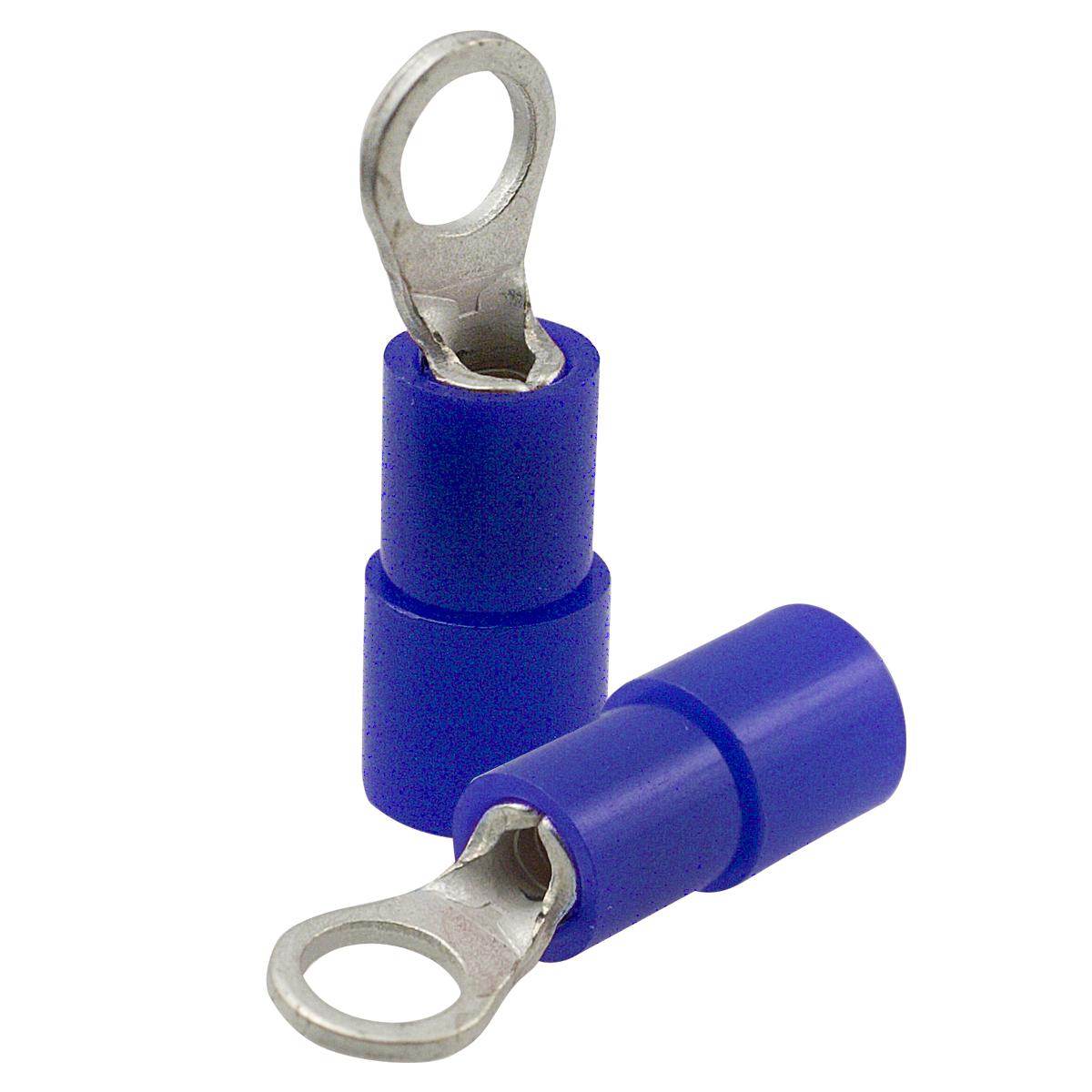

ILSCO® ClearChoice® 44216-B10 ILSB Insulated Ring Terminal, 16 to 14 AWG, 3/8 in Stud, Copper
Sku #78366944263
MFG #44216-B10
Attributes
| Type: | Insulated |
| Conductor Size: | 16 to 14 AWG |
| Stud Size: | 3/8 in |
| Series: | ILSB |
| Voltage Rating: | 600 V AC |
| Overall Length: | 1.06 in |
- Insulated rings are color coded
- Manufactured from high strength copper alloy and electro-tin plated
- Silver solder brazed seam on all non-insulated rings and forks
- UL listed and CSA certified for 600 VAC with the exception of high temperature rings, flag terminals and all uninsulated terminals
- High temperature ring terminals are nickel plated
- For copper conductor only
- Vinyl insulated ring connector
- Provides easy wire range identification 22 to 18 AWG red, 16 to 14 AWG blue, 12 to 10 AWG yellow
- Provides maximum conductivity
- Provides low contact resistance
- Provides tough pliable insulative qualities to protect connectors and wire from corrosion as well as providing some strain relief
- Ensures reliability for copper conductor
- For terminating connector
- UL E158587|CSA Certified|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
