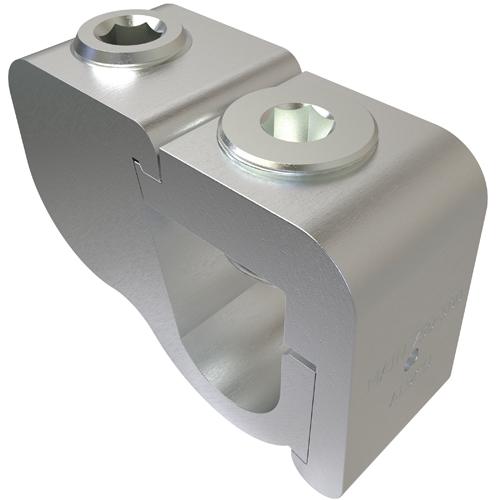

ILSCO® ClearChoice® GTT-750-500 Type GTT Dual Rated Lay-In Tap Connector, Copper/Aluminum Conductor, 500 kcmil, 2 AWG Min Run/Tap, 750 kcmil, 500 kcmil Max Run/Tap, Aluminum Alloy
Sku #78366937940
MFG #GTT-750-500
Attributes
| Type: | Type GTT Dual Rated Lay-In |
| Minimum Run/Tap: | 500 kcmil, 2 AWG |
| Voltage Rating: | 600 V AC |
| Conductor Type: | Copper/Aluminum |
| Maximum Run/Tap: | 750 kcmil, 500 kcmil |
| Specifications: | 3/8 in Tap |
- Compact design saves space and reduces installation time
- Range taking for reduced inventories and flexibility
- Re-usable provides efficient use and flexibility in the field
- Lay-in main conductor, no need to break the feeder cable
- Insulating cover available, eliminates taping
- Electro tin plated provides low contact resistance
- For tap connectors
- UL 486A/486B/453G File No. E6207|CSA File No. LR29601|PROP65: it is not known to contain any chemicals associated with this regulation
