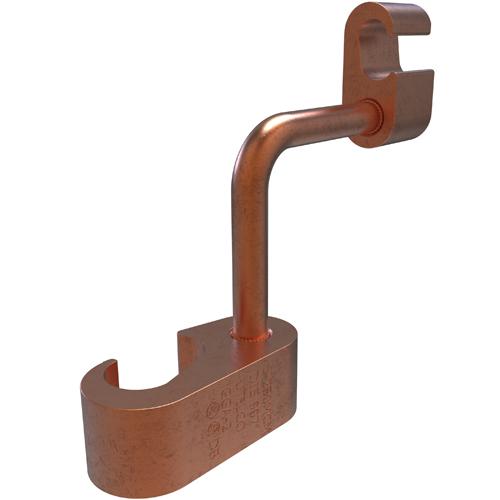

ILSCO® ClearChoice® GGA-2 Type GGA Grounding Grid Connector, 1 AWG to 250 kcmil Conductor, 1/2 to 5/8 in Rod, Figure 6, Copper
Sku #78366926002
MFG #GGA-2
Attributes
| Type: | Type GGA |
| Rod Size: | 1/2 to 5/8 in |
| Specifications: | 600 V AC Voltage Rating |
| Conductor Size: | 1 AWG to 250 kcmil |
| Shape: | Figure 6 |
| Material: | Copper |
- Manufactured from high strength copper alloy provides maximum conductivity and eliminates the possibility of corrosion
- Clearly marked with wire size and die index provides easy identification and tooling recommendation
- Range taking reduces inventory
- Pre-filled with DE-OX® oxide inhibiting compound prevents oxides from forming
- Connector can be rotated to adjust for alignment of grid
- For copper conductor only
- Non-hazardous installation - can be installed in all types of weather with no need for protective equipment or clothing
- Does not produce heat or dangerous particles
- Temperature rating 90 deg C ensures reliability
- 6 AWG solid to 2 AWG stranded side B tap conductor (cable to cable and cable to ground rod)
- #3 to 4 side B rebar
- (1) 997 main die index
- Connector can be adjusted prior to installation permits adjustments to be made for misaligned cross grids
- CSA LR5465|UL 667P/467/E34440|PROP65: it is not known to contain any chemicals associated with this regulation
- For grounding and bonding for direct burial in earth or concrete
