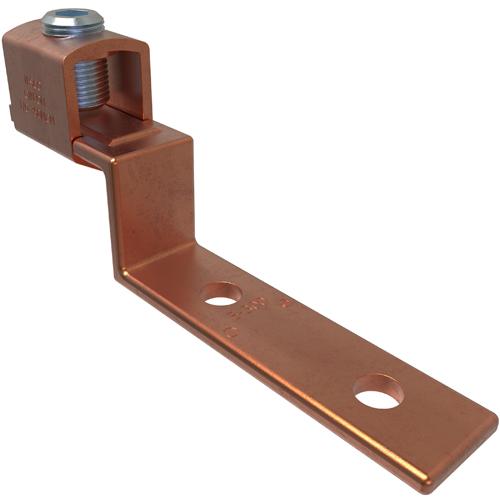

ILSCO® ClearChoice® E-300 Type E Offset Mechanical Lug, 1/0 AWG to 350 kcmil Copper Conductor, 3/8 in Stud, 2 Bolt Holes, Copper
Sku #78366925124
MFG #E-300
Attributes
| Type: | Type E Offset |
| Conductor Size: | 1/0 AWG to 350 kcmil |
| Number of Bolt Holes: | 2 |
| Conductor Type: | Copper |
| Stud Size: | 3/8 in |
| Tongue Size: | 3.6875 in L x 0.188 in THK |
- Manufactured from electrolytic copper tubing and strip stock provides maximum conductivity and strength
- Compact design saves space and reduces installation time
- Range taking permits inventories to be kept to a minimum
- Re-usable provides efficient use and flexibility in the field
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- V-bottom collar wires are wedged between arched pressure bar and collar establishing positive contact and firm permanent grip
- Two mounting holes acts as anti-rotation device and prevents turning in safety switches, control equipment etc
- UL 453G/486A/B/File No. E6207|CSA File No. LR29601
