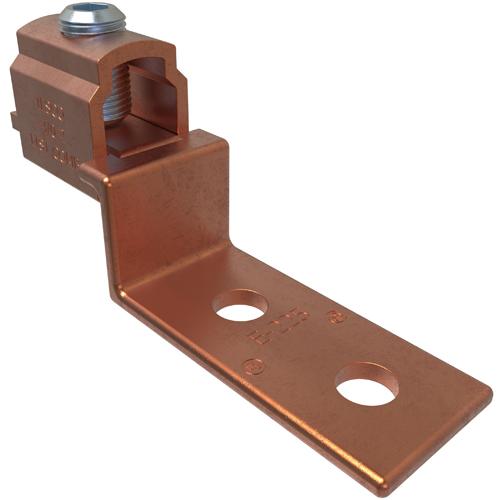

ILSCO® ClearChoice® E-225 Type E Compact Mechanical Lug, 4/0 to 2 AWG Copper Conductor, 5/16 in Stud, 2 Bolt Holes, Copper
Sku #78366924826
MFG #E-225
Attributes
| Type: | Type E Compact |
| Conductor Size: | 4/0 to 2 AWG |
| Number of Bolt Holes: | 2 |
| Conductor Type: | Copper |
| Stud Size: | 5/16 in |
| Tongue Size: | 2.1563 in L x 1 in W x 0.125 in THK |
- Re-usable
- Range taking for reduced inventories and flexibility and permits inventories to be kept to a minimum
- Manufactured from electrolytic copper tubing and strip stock provides maximum conductivity and strength
- Provides efficient use and flexibility in the field
- Ensures reliability for copper conductor
- Compact design saves space and reduces installation time
- Wires are wedged between arched pressure bar and collar establishing positive contact and firm permanent grip
- V-bottom collar
- 2 mounting holes act as anti-rotation device and prevents turning in safety switches, control equipment etc
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- Contact factory for listed wire combinations
- A - UL listed combinations (2) 10 stranded or (2) 12 stranded or (2) 14 stranded or (1) 12 stranded and (1) 14 stranded or (1) 10 stranded and (1) 12 stranded
- B - UL listed combinations (1) 8 stranded and (1) 4 stranded or (1) 8 stranded and (1) 6 stranded or (2) 4 stranded or (3) 8 stranded or (3) 6 stranded or (2) 8 stranded and (1) 4 stranded or (2) 8 stranded and (1) 6 stranded or (1) 6 stranded and (1) 4 stranded or (2) 6 stranded
- For copper conductor only
- 2-studs
- 11/32 in mounting hole
- 1 in mounting hole spacing
- For terminating connector
- CSA File No. LR-29601|UL 486A-B/E6207/453G
