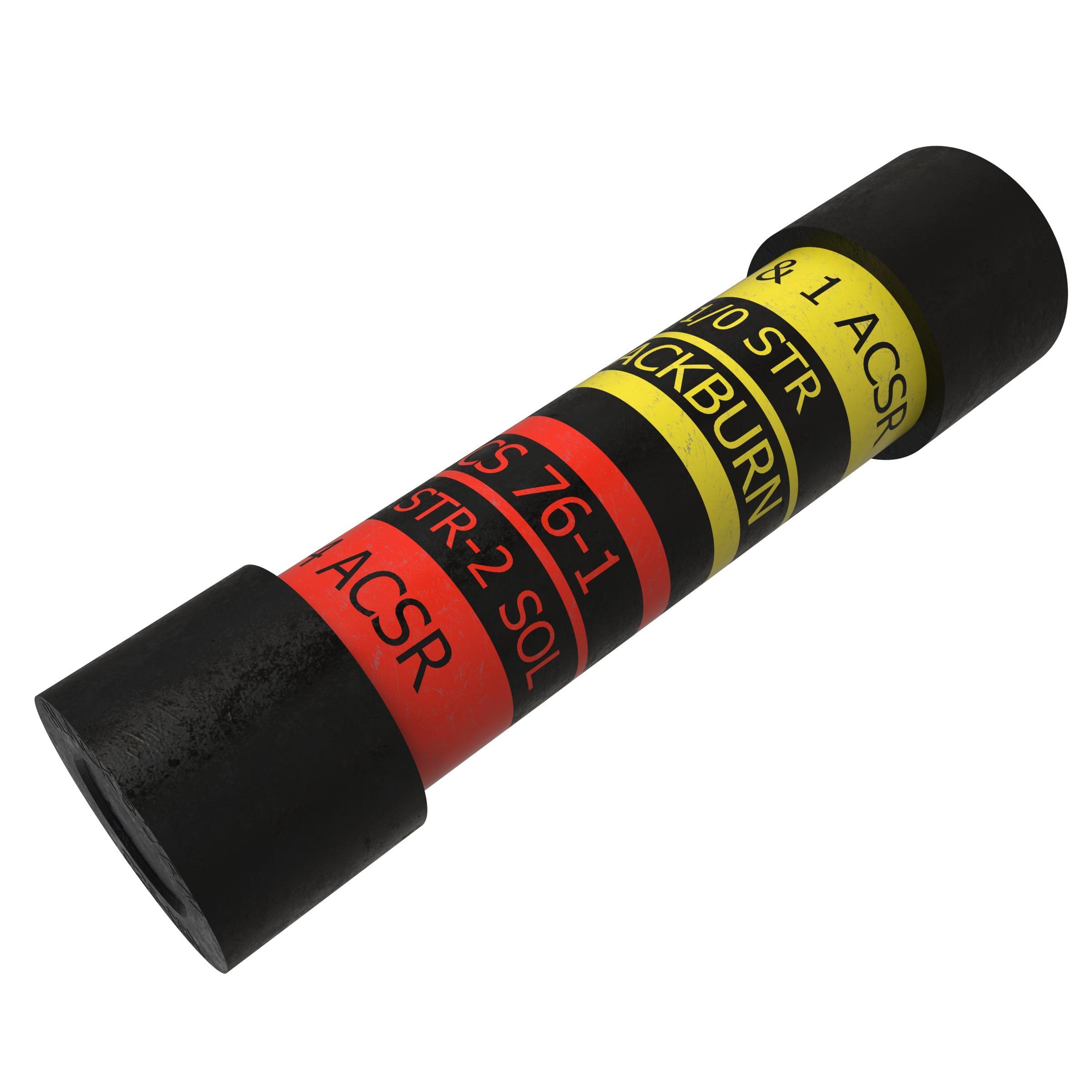

ILSCO® ClearChoice® PICS-76 Type PICS Dual Rated Insulated Service Entrance Sleeve, 1/0 AWG End A, 4 to 3 AWG End B Copper/Aluminum Conductor, Die Code: 5/8 or BG, 2-7/8 in L, Aluminum
Sku #78366923297
MFG #PICS-76
Attributes
| Type: | Type PICS Dual Rated Insulated |
| Conductor Size: | 1/0 AWG End A, 4 to 3 AWG End B |
| Length: | 2-7/8 in |
| Conductor Type: | Copper/Aluminum |
| Die Code: | 5/8 or BG |
| Material: | Aluminum |
- Splicer/Reducer Applications
- Pre insulated for fast and easy installation
- Concave polyethylene end caps seal out dirt, but are easily pierced when inserting conductor
- Ensures reliability
- 0.368 to 0.398 in Dia end A, 0.213 to 0.258 in Dia end B conductor range
- 1/0 AWG ACSR/stranded end A, 4 AWG ACSR, 4 to 3 AWG stranded, 2 AWG solid end B conductor size
- ANSI C119.4|RUS Certified|PROP65: it is not known to contain any chemicals associated with this regulation
