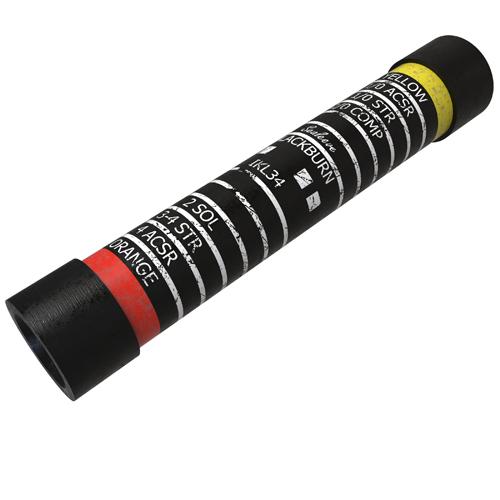

ILSCO® ClearChoice® PICS-834 Type P840 Dual Rated Insulated Service Entrance Sleeve, 1/0 to 2/0 AWG End A, 4 to 3 AWG End B Copper/Aluminum Conductor, Die Code: 840, 2-7/8 in L, Aluminum
Sku #78366923266
MFG #PICS-834
Attributes
| Type: | Type P840 Dual Rated Insulated |
| Conductor Size: | 1/0 to 2/0 AWG End A, 4 to 3 AWG End B |
| Length: | 2-7/8 in |
| Conductor Type: | Copper/Aluminum |
| Die Code: | 840 |
| Material: | Aluminum |
- Pre insulated for fast and easy installation
- Concave polyethylene end caps seal out dirt, but are easily pierced when inserting conductor
- Ensures reliability
- 0.365 to 0.398 in Dia for end A, 0.213 to 0.258 in Dia for end B conductor range
- 0.365 to 0.398 in Dia end A, 0.213 to 0.258 in Dia end B conductor range
- 1/0 AWG ACSR, 1/0 to 2/0 AWG (compact) stranded end A, 4 AWG ACSR, 4 to 3 AWG stranded, 2 AWG solid end B conductor size
- ANSI C119.4|RUS Certified|PROP65: it is not known to contain any chemicals associated with this regulation
- Splicer/Reducer Applications
