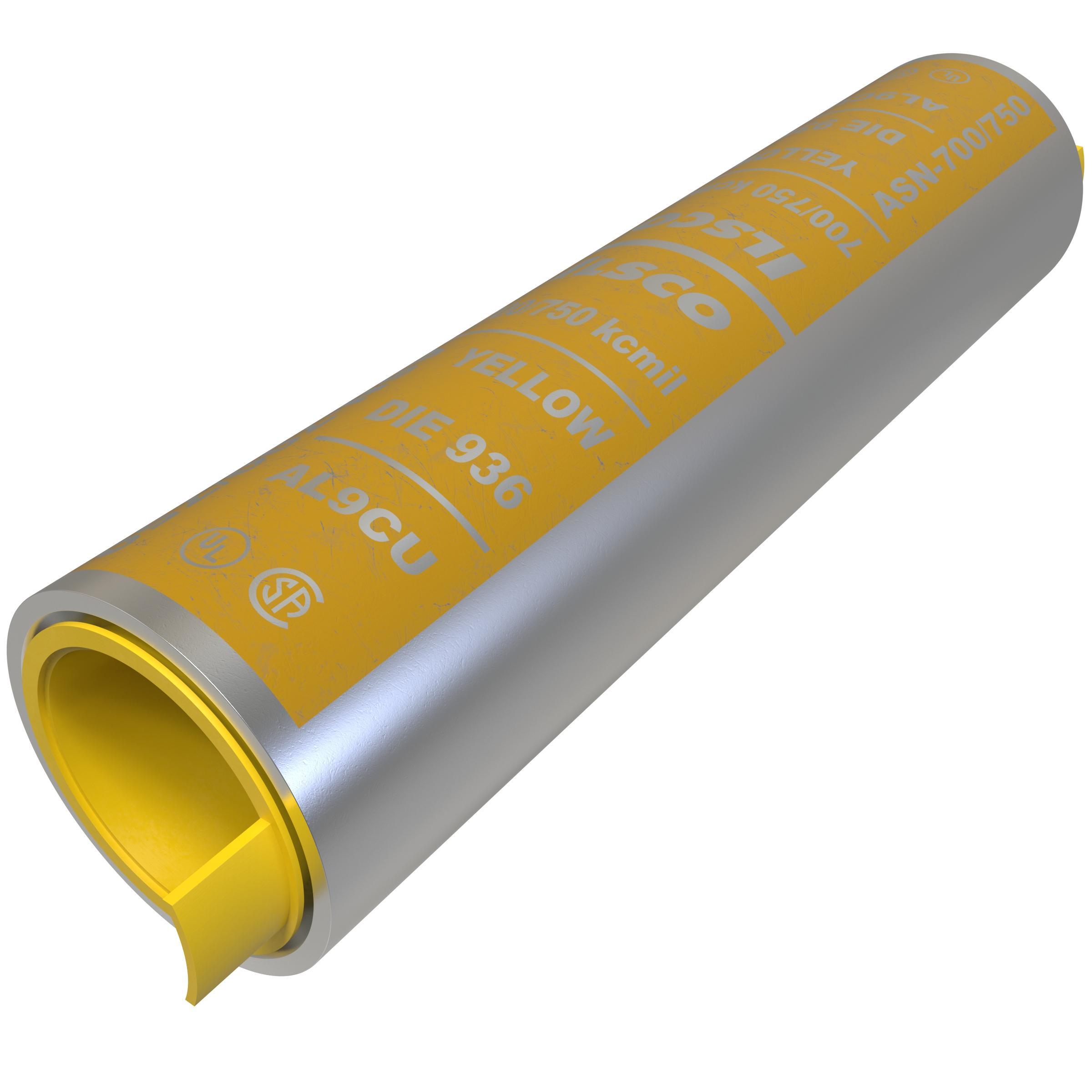

ILSCO® ClearChoice® SureCrimp® ASN-700/750 Type ASN Dual Rated Compression Sleeve, 500 to 750 kcmil Copper/Aluminum Conductor, Die Code: 936, 5.928 in L, Aluminum Alloy
Sku #78366918486
MFG #ASN-700/750
Attributes
| Type: | Type ASN Dual Rated |
| Conductor Size: | 500 to 750 kcmil |
| Length: | 5.928 in |
| Conductor Type: | Copper/Aluminum |
| Die Code: | 936 |
| Temperature Rating: | 90 deg C |
- Manufactured from high strength aluminum alloy which offers maximum conductivity and excellent crimping characteristics
- Electro tin plated for low contact resistance
- Chamfered entry for easy conductor insertion
- Color coded end cap identifies the proper compression die
- Roll marked barrel for easy identification and proper location of crimps
- Prefilled with DE-OX® prevents oxide from forming
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Expanded wire size applicable when installed with specified dieless tools
- Splicer/Reducer Applications
- UL 486 A/B/453G File No. E6207|CSA File No. LR29601|PROP65: it is not known to contain any chemicals associated with this regulation
