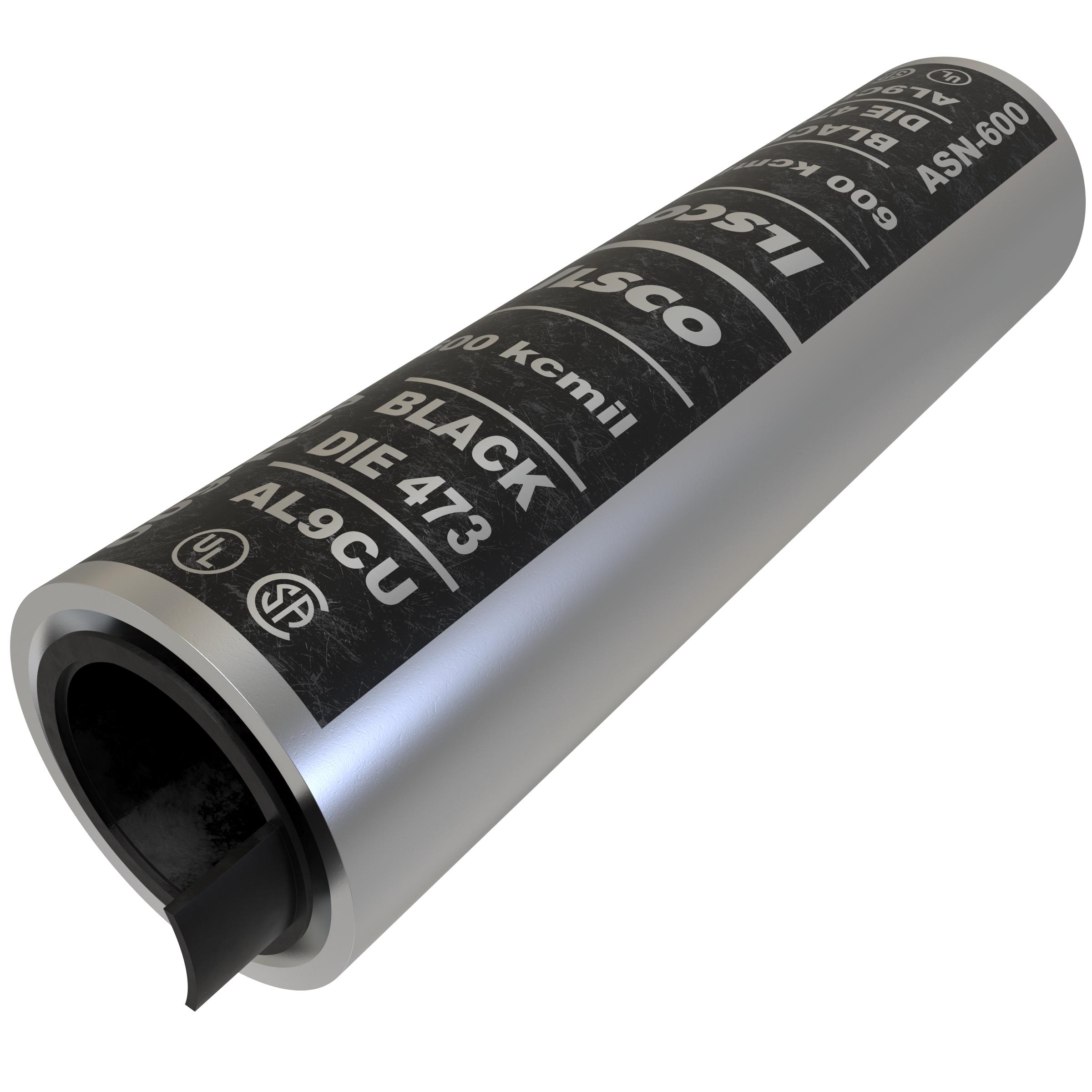

ILSCO® ClearChoice® ASN-600 Type ASN Dual Rated Compression Sleeve, 600 kcmil Aluminum/Copper Conductor, Die Code: 473, 5.37 in L, Aluminum
Sku #78366918485
MFG #ASN-600
Attributes
| Type: | Type ASN Dual Rated |
| Conductor Size: | 600 kcmil |
| Length: | 5.37 in |
| Conductor Type: | Aluminum/Copper |
| Die Code: | 473 |
| Connector Type: | Crimp |
- Manufactured from high strength aluminum alloy provides maximum conductivity and excellent crimping characteristics
- Electro tin plated for low contact resistance
- Chamfered entry for easy conductor insertion
- Color coded end cap identifies the proper compression die
- Roll marked barrel for easy identification and proper location of crimps
- Pre-filled with DE-OX® prevents oxide from forming
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Expanded wire size applicable when installed with specified dieless tools
- Dual-rated for aluminum and copper conductor
- Offers maximum conductivity and excellent crimping characteristics
- Provides low contact resistance, identifies proper compression die, prevents oxides from forming and promotes connector longevity
- Permits inventories to be kept to a minimum
- Application versatility
- For use with aluminum and copper conductors
- UL 486A-B File No. E6207|CSA Certified|ECCN EAR99|PROP65: Cancer - www.p65warnings.ca.gov
- For use with splicer and reducer
