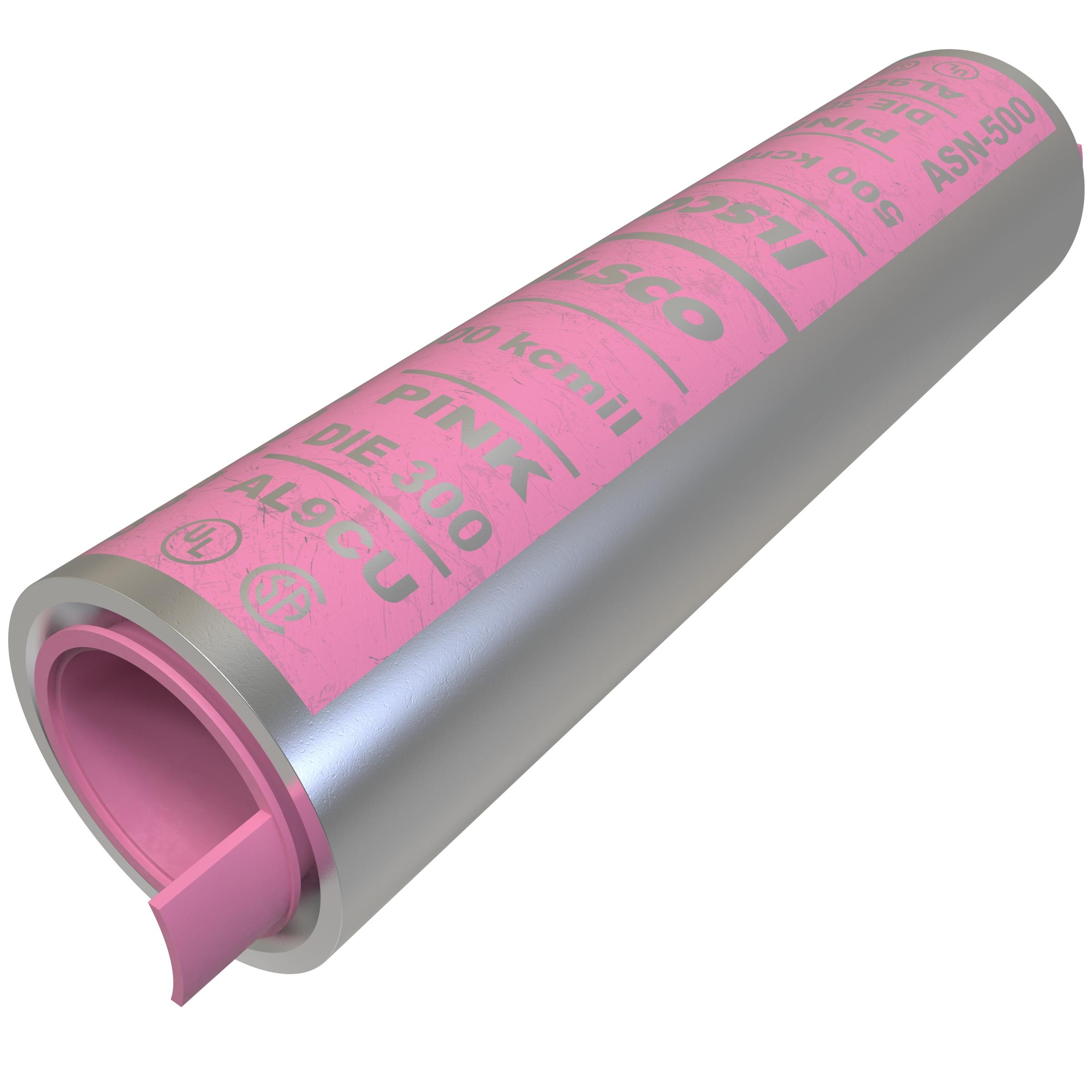

ILSCO® ClearChoice® ASN-500 Type ASN Dual Rated Compression Sleeve, 500 kcmil Aluminum/Copper Conductor, Die Code: 300, 5.13 in L, Aluminum
Sku #78366918484
MFG #ASN-500
Attributes
| Type: | Type ASN Dual Rated |
| Conductor Size: | 500 kcmil |
| Length: | 5.13 in |
| Conductor Type: | Aluminum/Copper |
| Die Code: | 300 |
| Connector Type: | Crimp |
- Manufactured from high strength aluminum alloy provides maximum conductivity and excellent crimping characteristics, electro-tin plated for low contact resistance
- Chamfered entry for easy conductor insertion, end barrel and pre-filled with DE-OX® prevents oxide from forming
- Proper high voltage spacing and insulation techniques must be used, for high voltage applications up to 35 kV
- Roll marked barrel for easy identification and proper location of crimps
- Provides low contact resistance, maximum conductivity and excellent crimping characteristics and versatility
- Provides easy conductor insertion
- Prevents oxides from forming, promotes connector longevity and color coded end cap identifies the proper compression die
- Expanded wire size applicable when installed with specified dieless tools
- Permits inventories to be kept to a minimum
- 4/0 AWG to 500 kcmil expanded conductor size
- Dual-rated for aluminum and copper conductor
- For use with splicer and reducer
- CSA File No. LR-29601|UL 486A-B File No. E6207 453G|ECCN EAR99|PROP65: Cancer - www.p65warnings.ca.gov
