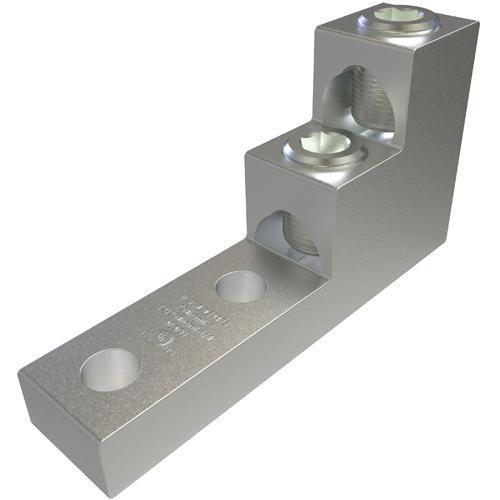

ILSCO® PBMW-2-750-12 Type PBMW Multi-Wire Panelboard Lug, (1) 2 AWG to 750 kcmil, (2) 1/0 AWG to 250 kcmil, 1/2 in Bolt/Stud, 1-3/4 in Hole Spacing, For Use With Copper or Aluminum Conductor
Sku #78366918436
MFG #PBMW-2-750-12
Attributes
| Type: | Type PBMW Multi-Wire |
| Bolt/Stud Size: | 1/2 in |
| Electrical Ratings: | 35 kV |
| Conductor Range: | (1) 2 AWG to 750 kcmil, (2) 1/0 AWG to 250 kcmil |
| Suitable For Use With: | Copper or Aluminum Conductor |
| Hole Spacing: | 1-3/4 in |
- Manufactured from high strength 6061-T6 aluminum alloy
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Stacked design
- Multi-wire hole can terminate two conductors per port
- When using two conductors, parallel wires must be identical
- cULus Listed|CSA Certified|UL 486A/B/File No. E6207
