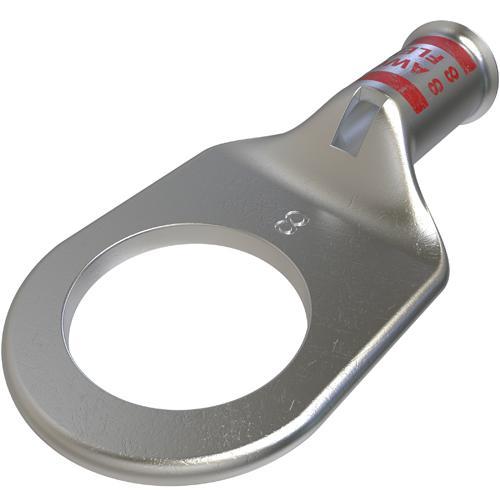

ILSCO® ClearChoice® CRA-8-12M CRAM 1-Hole Mining Lug Connector, 8 AWG, 1/2 in Stud, Copper
Sku #78366909804
MFG #CRA-8-12M
Attributes
| Type: | 1-Hole |
| Conductor Size: | 8 AWG |
| Stud Size: | 1/2 in |
| Series: | CRAM |
| Voltage Rating: | 600 V AC |
| Tongue Type: | Solid Seamless |
- For terminating connector
- Electro-tin plated
- Solid seamless tang
- Electrolytic copper
- Suitable for use in circuits rated 35 kV or less, Proper high voltage spacing and insulation techniques must be used
- Provides low contact resistance
- Visual inspection of proper cable insertion
- For performance and strength
- For high conductivity
- Application versatility
- Ease of wire insertion with flared end
- For copper conductor only
- Listed with ILSCO® MT-25
- Color coded
- Maximum conductivity and excellent crimping characteristics
- 8 AWG alternate conductor size
- 8 AWG flexible conductor size
- UL 486A/486B File No. E6207|CSA LR-29601|PROP65: it is not known to contain any chemicals associated with this regulation
