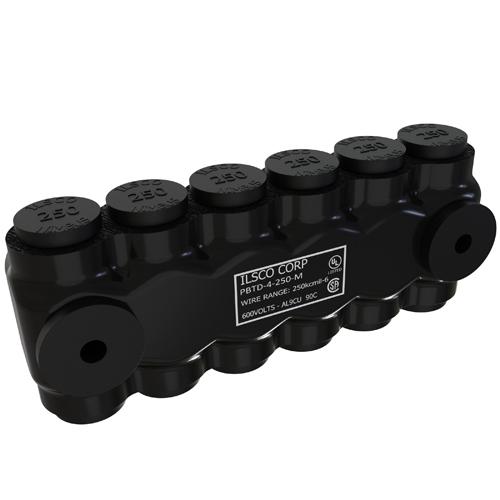

ILSCO® NIMBUS® PBTD-4-250-M Type PBTM 2-Sided Entry 4-Port Dual Rated Insulated Multi-Tap Connector, Aluminum/Copper Conductor, Trough/Wire Way/Panel Installation, Aluminum
Sku #78366908097
MFG #PBTD-4-250-M
Attributes
| Type: | Type PBTM 2-Sided Entry 4-Port Dual Rated Insulated |
| Installation Type: | Trough/Wire Way/Panel |
| Specifications: | 6 AWG to 250 kcmil Wire, 5/16 in Hex, 1/4 in Mount Hole, 290 A |
| Conductor Type: | Aluminum/Copper |
| Voltage Rating: | 600 V AC |
| Temperature Rating: | -45 to 90 deg C |
- Broad wire range 6 AWG to 750 kcmil
- High dielectric strength plastisol is chemical resistant
- Black cover is UV rated
- Removable port and screw plugs
- Pre-filled with DE-OX® oxide inhibiting compound
- Per NEC article 310-16 allowable ampacities are as follows 4 to 95 A, 1/0 to 170 A, 3/0 to 225 A, 250 to 290 A, 350 to 350 A, 600 to 475 A and 750 to 535 A
- Ensures reliability
- Flexibility in the field
- Entry port closure
- Prevents oxides from forming
- Incoming and outgoing conductors must be staggered
- Mountable
- CSA File No. LR-29601|UL 486A/486B|UL 453G|UL File No. E6207|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
