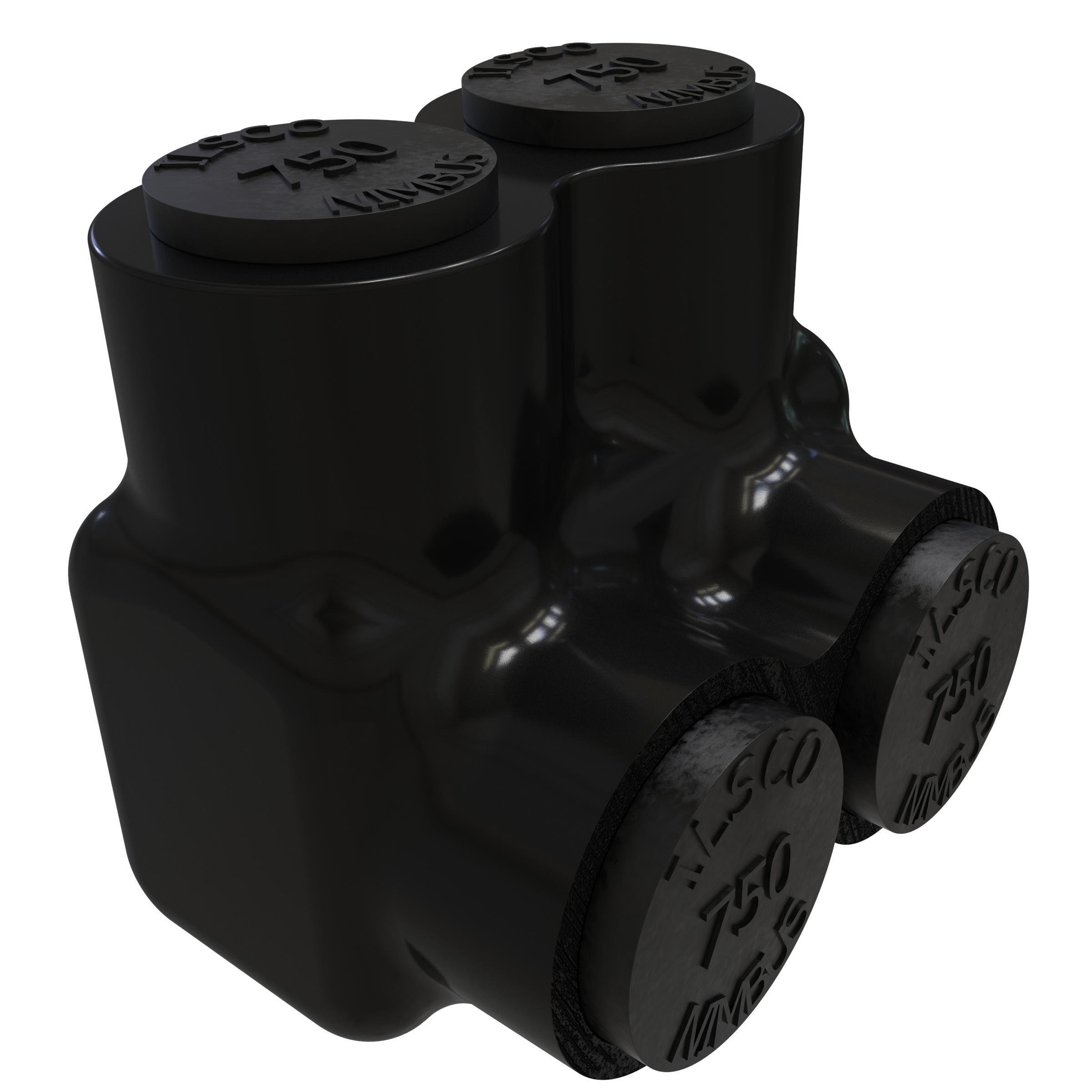

ILSCO® NIMBUS® PBTS-2-750 Type PBTS 1-Sided Entry 2-Port Dual Rated Insulated Multi-Tap Connector, Aluminum/Copper Conductor, Aluminum
Sku #78366908054
MFG #PBTS-2-750
Attributes
| Type: | Type PBTS 1-Sided Entry 2-Port Dual Rated Insulated |
| Voltage Rating: | 600 V AC |
| Temperature Rating: | -45 to 90 deg C |
| Conductor Type: | Aluminum/Copper |
| Specifications: | 250 to 750 kcmil Wire, 1/2 in Hex, 535 A |
| Material: | Aluminum |
- Broad wire range 14 AWG to 750 kcmil
- High dielectric strength plastisol is chemical resistant
- Black cover is UV rated
- Removable port and screw plugs
- Pre-filled with DE-OX® oxide inhibiting compound
- Per NEC article 310-16 allowable ampacities are as follows 4 to 95 A, 1/0 to 170 A, 3/0 to 225 A, 250 to 290 A, 350 to 350 A, 600 to 475 A and 750 to 535 A
- Flexibility in the field
- Ensures reliability
- Patented screw design
- Entry port closure
- Prevents oxides from forming
- Chemical resistant
- Incoming and outgoing conductors must be staggered
- CSA File No. LR-29601|UL 486A/486B|UL 453G|UL File No. E6207|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
