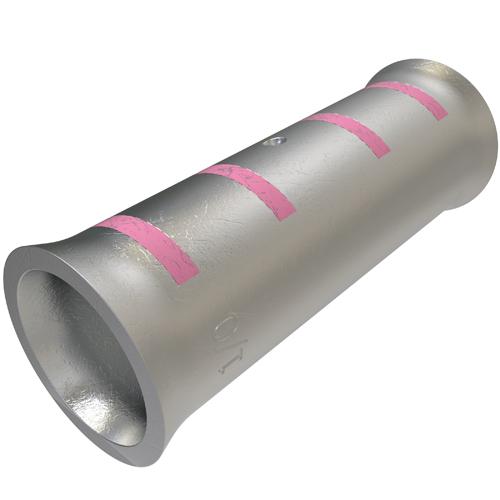

ILSCO® ClearChoice® CCS-1/0 CCS Flared End Light Duty Compression Sleeve, 1/0 AWG Copper Conductor, 1.55 in L, Copper
Sku #78366903205
MFG #CCS-1/0
Attributes
| Type: | Flared End Light Duty |
| Conductor Type: | Copper |
| Length: | 1.55 in |
| Series: | CCS |
| Conductor Size: | 1/0 AWG |
| Connector Type: | Crimp |
- Manufactured from high strength copper and electro-tin plated
- Flared end and sight hole
- Proper high voltage spacings and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Listed with ILSCO® tools MT-25 and ILC-10
- Provides low contact resistance, maximum conductivity and excellent crimping characteristics and versatility
- Provides easy wire insertion, visual tooling recommendation for ILSCO® or standard industry tools
- Allows visual inspection
- Color code identifies the proper compression die
- For use with splicer/reducer
- AP-100973-1|CSA Certified|UL File No. E158587 8M24|PROP65: it is not known to contain any chemicals associated with this regulation
