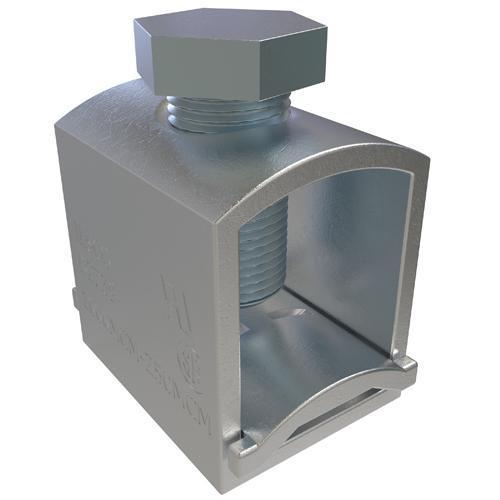

ILSCO® ClearChoice® D-2739 Type CO-PP Box Mechanical Lug With Pressure Plate, 500 to 1000 kcmil Copper Conductor, Copper
Sku #78366902830
MFG #D-2739
Attributes
| Type: | Type CO-PP Box |
| Conductor Size: | 500 to 1000 kcmil |
| Voltage Rating: | 2000 V AC |
| Conductor Type: | Copper |
| Number of Bolt Holes: | 1 |
| Specifications: | 5/16-18 in Boss Mounting Hole Tapped, 0.365 to 0.38 in Round Boss Outside, 3/4-16 Steel Cap Hex Head |
- Manufactured from electrolytic seamless copper tubing provides maximum conductivity and strength
- Compact design saves space and reduces installation time
- Range taking permits inventories to be kept to a minimum
- Re-usable provides efficient use and flexibility in the field
- Bossed mounting holes acts as an anti-rotation device and prevents the connector from turning
- Pressure plate prevents screw damage to the conductor
- Electro tin plated provides low contact resistance
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- CSA File No. LR29601|UL 486A/B/File No. E6207|UL Recognized
