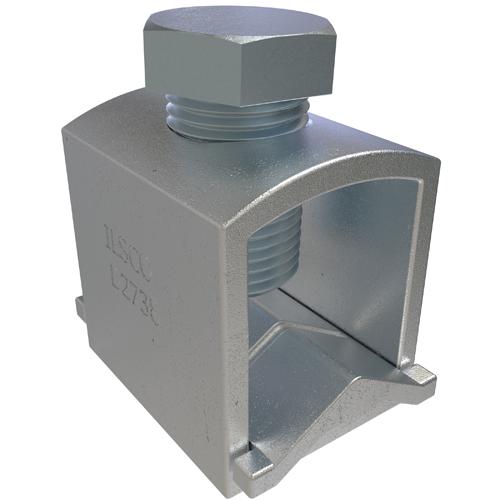

ILSCO® ClearChoice® D-2738 Type COPP Compact Box Mechanical Terminal Lug With Pressure Plate, 1/0 AWG to 500 kcmil Copper Conductor, 1 Bolt Hole, Copper
Sku #78366902825
MFG #D-2738
Attributes
| Type: | Type COPP Compact Box |
| Conductor Size: | 1/0 AWG to 500 kcmil |
| Voltage Rating: | 2000 V AC |
| Conductor Type: | Copper |
| Number of Bolt Holes: | 1 |
| Specifications: | 1/4-20 Boss Mounting Hole Tapped |
- Reusable
- Range taking for reduced inventories and flexibility and provides efficient use and flexibility in the field
- Manufactured from electrolytic seamless copper tubing provides maximum conductivity and strength
- Electro-tin plated provides low contact resistance
- Ensures reliability for copper conductor
- Compact design saves space and reduces installation time
- Bossed mounting holes act as an anti-rotation device and prevents connector from turning
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- Pressure plate prevents screw damage to the conductor
- 0.3025 to 0.3225 in round bottom outside boss
- 5/8-18 steel cap hex head setscrew in top
- D-2742, D2741, D2740, D2738, D2739 are UL recognized and CSA certified copper conductor only
- CO4RPP is UL recognized aluminum and copper conductor 75 deg C
- Terminating Connector Applications
- CSA File No. LR-29601|UL 486A-B File No. E6207|UL Recognized|ECCN EAR99
