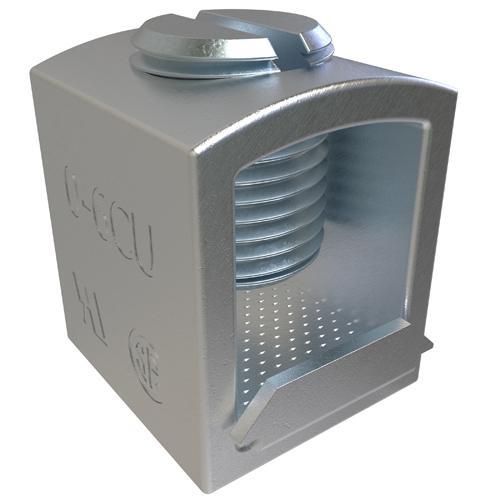

ILSCO® ClearChoice® D-2741 Type CO-PP Box Mechanical Lug With Pressure Plate, 6 to 1/0 AWG Copper Conductor, Copper
Sku #78366902815
MFG #D-2741
Attributes
| Type: | Type CO-PP Box |
| Conductor Size: | 6 to 1/0 AWG |
| Voltage Rating: | 2000 V AC |
| Conductor Type: | Copper |
| Number of Bolt Holes: | 1 |
| Specifications: | 10-32 in Mounting Hole Tapped, 0.227 to 0.231 in Square Boss Outside, 3/8-27 Steel Headless |
- Manufactured from electrolytic seamless copper tubing provides maximum conductivity and strength
- Compact design saves space and reduces installation time
- Range taking permits inventories to be kept to a minimum
- Re-usable provides efficient use and flexibility in the field
- Bossed mounting holes acts as an anti-rotation device and prevents the connector from turning
- Pressure plate prevents screw damage to the conductor
- Electro tin plated provides low contact resistance
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- CSA File No. LR29601|UL 486A/B/File No. E6207|UL Recognized
