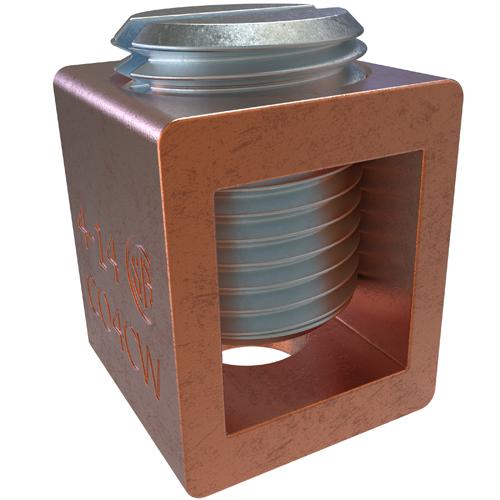

ILSCO® ClearChoice® CO4CW Type CO Compact Box Mechanical Lug, 14 to 4 AWG Copper Conductor, 1 Bolt Hole, Copper
Sku #78366902720
MFG #CO4CW
Attributes
| Type: | Type CO Compact Box |
| Conductor Size: | 14 to 4 AWG |
| Voltage Rating: | 2000 V AC |
| Conductor Type: | Copper |
| Number of Bolt Holes: | 1 |
| Specifications: | 0.203 in Mounting Hole Tapped, 3/8-27 Top Hole Tapped |
- Re-usable
- Range taking for reduced inventories and flexibility and permits inventories to be kept to a minimum
- Manufactured from electrolytic seamless copper tubing provides maximum conductivity and strength
- Provides efficient use and flexibility in the field
- Ensures reliability for copper conductor
- Compact design saves space and reduces installation time
- Bossed mounting holes act as an anti-rotation device and prevents connector from turning
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- For copper conductor only
- No boss
- CSA File No. LR-29601|UL 486A-B/UL File No. E6207|UR Listed
- For terminating connector
