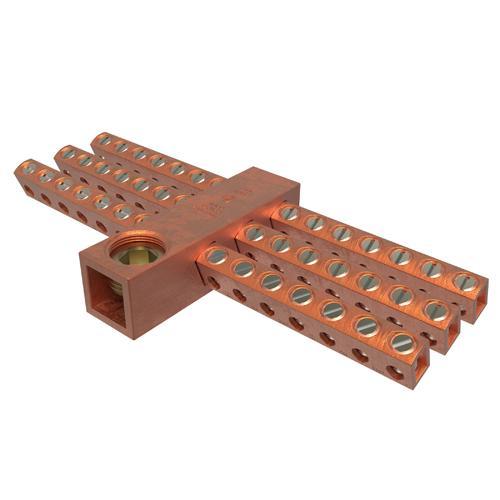

ILSCO® ClearChoice® CAN-303 Mechanical Neutral Bar, 3 in L x 5-1/2 in W x 1-7/16 in H, 600 V AC
Sku #78366902694
MFG #CAN-303
Attributes
| Series: | CAN |
| Bar Length: | 3 in |
| Voltage Rating: | 600 V AC |
| Bar Width: | 5-1/2 in |
| Bar Height: | 1-7/16 in |
| Cable Tap: | 14 to 6 AWG |
- For tap connector/grounding connector
- Manufactured from high strength copper tubing
- Compact design
- Range taking
- Circuit bars inserted at a 20 deg angle
- Provides maximum conductivity
- Up to 42 circuit taps can be made in just 5-1/2 in of space
- A wide range of conductor sizes can be used in the same connector
- Provides easy wire insertion
- 10 to 32 tapped mounting holes
- CSA LR-29601|UL 486A/B|E6207|UL Recognized|PROP65: it is not known to contain any chemicals associated with this regulation
