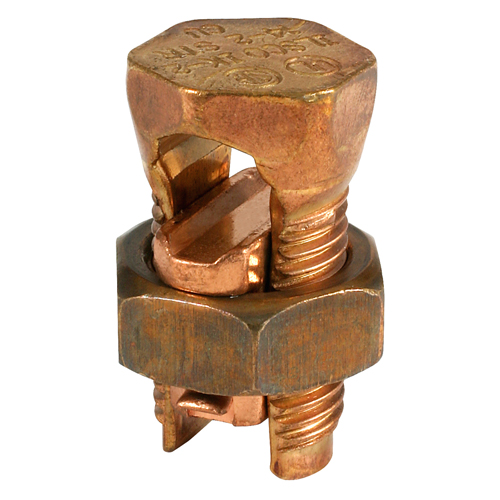

ILSCO® IK-3/0N Type IK Connector, 12 to 3/0 AWG Solid/Stranded Conductor, Copper Alloy
Sku #78366902604
MFG #IK-3/0N
Attributes
| Type: | Type IK |
| Conductor Size: | 12 to 3/0 AWG |
| Specifications: | 0.258 to 0.47 inch Wire Insulation Diameter, 500 in-lb Torque |
| Conductor Type: | Solid/Stranded |
| Voltage Rating: | 3500 V AC |
| Temperature Rating: | 90 deg C |
- CSA Certified|ROHS Compliant|UL Listed
- Precision tooled threads
- Unique design on pressure pad for added secureness
- For use with copper conductor types: Solid, Compact, Compressed, Concentric
- Suitable for use in circuits rated 35 KV or less, proper high voltage spacing and insulation techniques must be used
- Provides maximum conductivity and high breakage resistance
- Allows maximum torque to be applied
- Suitable for direct burial in earth and concrete
- Application versatility
