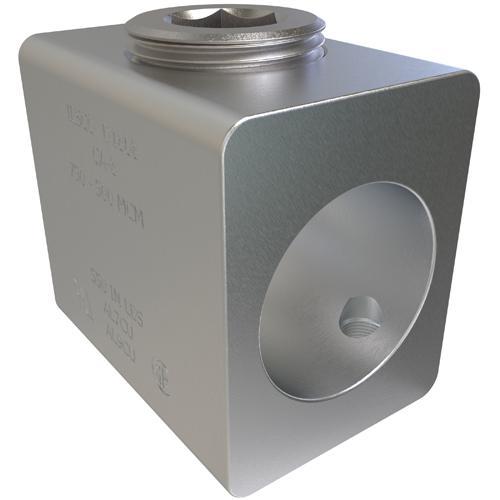

ILSCO® ClearChoice® CA8 Type CA Box Dual Rated Mechanical Lug, 500 to 750 kcmil Aluminum/Copper Conductor, 1 Bolt Hole, Aluminum
Sku #78366902280
MFG #CA8
Attributes
| Type: | Type CA Box Dual Rated |
| Conductor Size: | 500 to 750 kcmil |
| Voltage Rating: | 2000 V AC |
| Conductor Type: | Aluminum/Copper |
| Number of Bolt Holes: | 1 |
| Specifications: | 1/2 in Hex, 5/16-18 2 Mounting Hole Tapped |
- Design includes bossed mounting holes act as an anti-rotation device and prevents connector from turning
- Suitable for use with either copper or aluminum conductors
- Parts with bossed hole allows anti-turn or mounting
- Made of high strength 6061-T6 aluminum alloy
- Electro-tin plated provides low contact resistance
- Ensures reliability
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- Flat bottom style
- For tap connector
- CSA File No. LR-29601|UL 486A-B/UL File No. E6207|UR Listed
