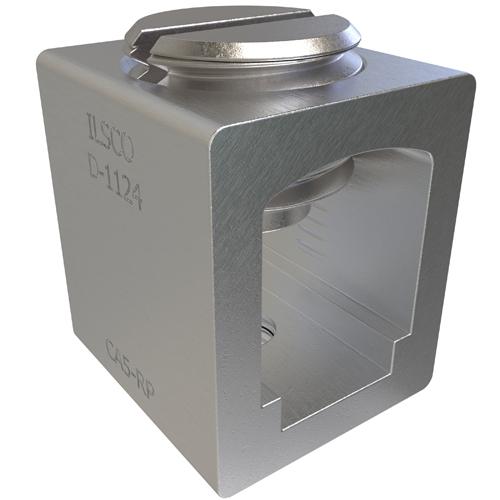

ILSCO® ClearChoice® CA5RP Box Dual Rated Mechanical Terminal Lug, 14 to 1/0 AWG Aluminum/Copper Conductor, 1 Bolt Hole, 6061-T6 Aluminum Alloy
Sku #78366902210
MFG #CA5RP
Attributes
| Type: | Box Dual Rated |
| Conductor Type: | Aluminum/Copper |
| Number of Bolt Holes: | 1 |
| Series: | CA Series |
| Conductor Size: | 14 to 1/0 AWG |
| Voltage Rating: | 2000 V AC |
- Manufactured from high strength 6061-T6 aluminum alloy
- Design includes bossed mounting holes act as an anti-rotation device and prevents connector from turning
- Suitable for use with either copper or aluminum conductors
- Parts with bossed hole allows anti-turn or mounting
- Electro-tin plated provides low contact resistance
- Ensures reliability
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- 0.229 in round style of boss
- 14 to 1/0 AWG copper, 12 to 1/0 AWG aluminum conductor size
- CSA File No. LR-29601|UL 486A-B File No. E6207|UL Recognized|ECCN EAR99
- Tap Connector Applications
