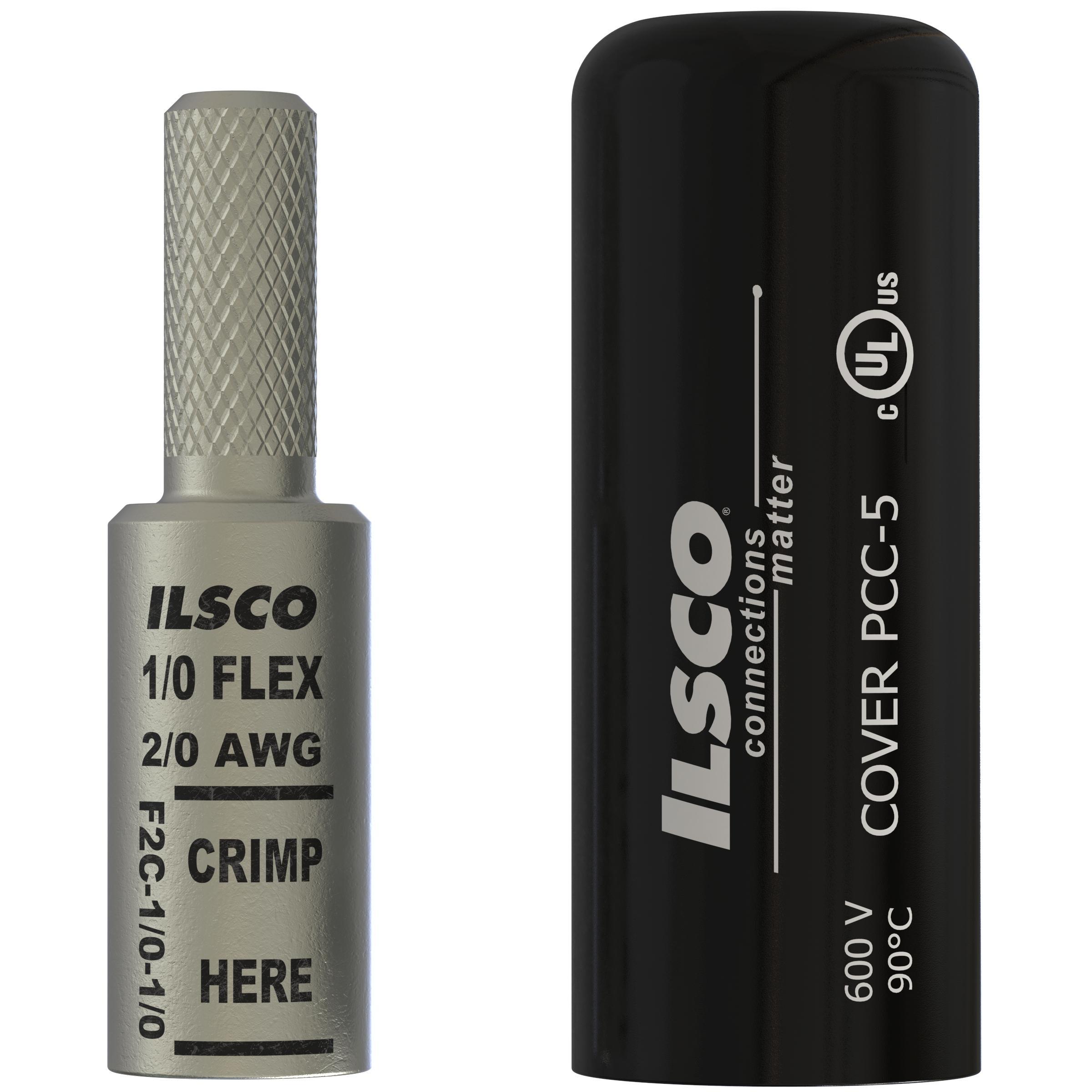

ILSCO® FLEX2CODE™ F2C-1/0-1/0 Pin Adapter With Insulating Cover, 1/0 AWG Conductor, Die Code: I-45, 13/40 in Dia x 0.87 in L Pin, Copper
Sku #78366901786
MFG #F2C-1/0-1/0
Attributes
| Series: | F2C |
| Die Code: | I-45 |
| Pin Diameter: | 13/40 in |
| Conductor Size: | 1/0 AWG |
| Color Code: | Black |
| Pin Length: | 0.87 in |
- All copper adapter design
- Compact design, smallest in the industry
- Only requires one crimp
- Certified with ILSCO and major competitor's tools
- Color coded
- Chamfered entry
- Electro-tin plated
- Allows flex conductors to be used with equipment rated for code conductors
- Saves space inside electrical panels
- Saves installation time
- Reduces inventory requirements
- Insulates conductor surface
- Ensures reliability
- For grounding and bonding applications
- Identifies the proper compression die
- For easy conductor insertion
- Provides low contact resistance
- cULus Listed|RoHS Compliant|UL 467/486 A/B|UL File No. E6252/E34440
