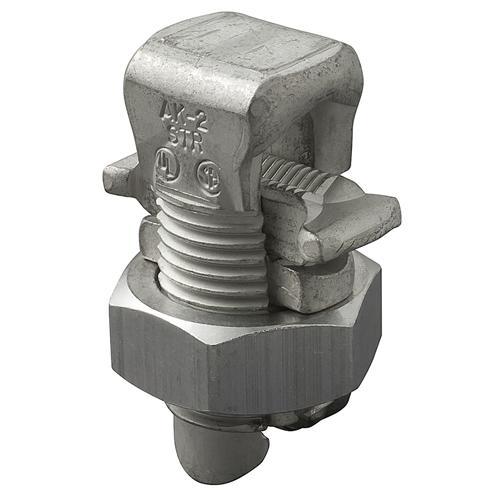

ILSCO® ClearChoice® AK-2/0-B Type AK Dual Rated Split Bolt, 2 to 2/0 AWG, 8 to 2/0 AWG Copper/Aluminum Conductor, Aluminum Alloy
Sku #78366901028
MFG #AK-2/0-B
Attributes
| Type: | Type AK Dual Rated |
| Conductor Size: | 2 to 2/0 AWG, 8 to 2/0 AWG |
| Specifications: | 385 in-lb Tightening Torque |
| Conductor Type: | Copper/Aluminum |
| Voltage Rating: | 2000 V AC |
| Temperature Rating: | 90 deg C |
- Manufactured from heat treated aluminum alloy provides maximum conductivity and strength for copper and aluminum conductors
- Triangular edges bite into the conductor to break through surface oxides which eliminates wire brushing
- Electro tin plated provides low contact resistance
- Spacer bar separates dissimilar metals which prevents galvanic corrosion
- Hex head provides ease of installation with standard wrenches
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- 2 to 2/0 AWG stranded main, 8 to 2/0 AWG stranded tap
- For tap/splice connectors
- CSA File No. 72632|UL 486A/486B/670B File No. E9998|PROP65: it is not known to contain any chemicals associated with this regulation
