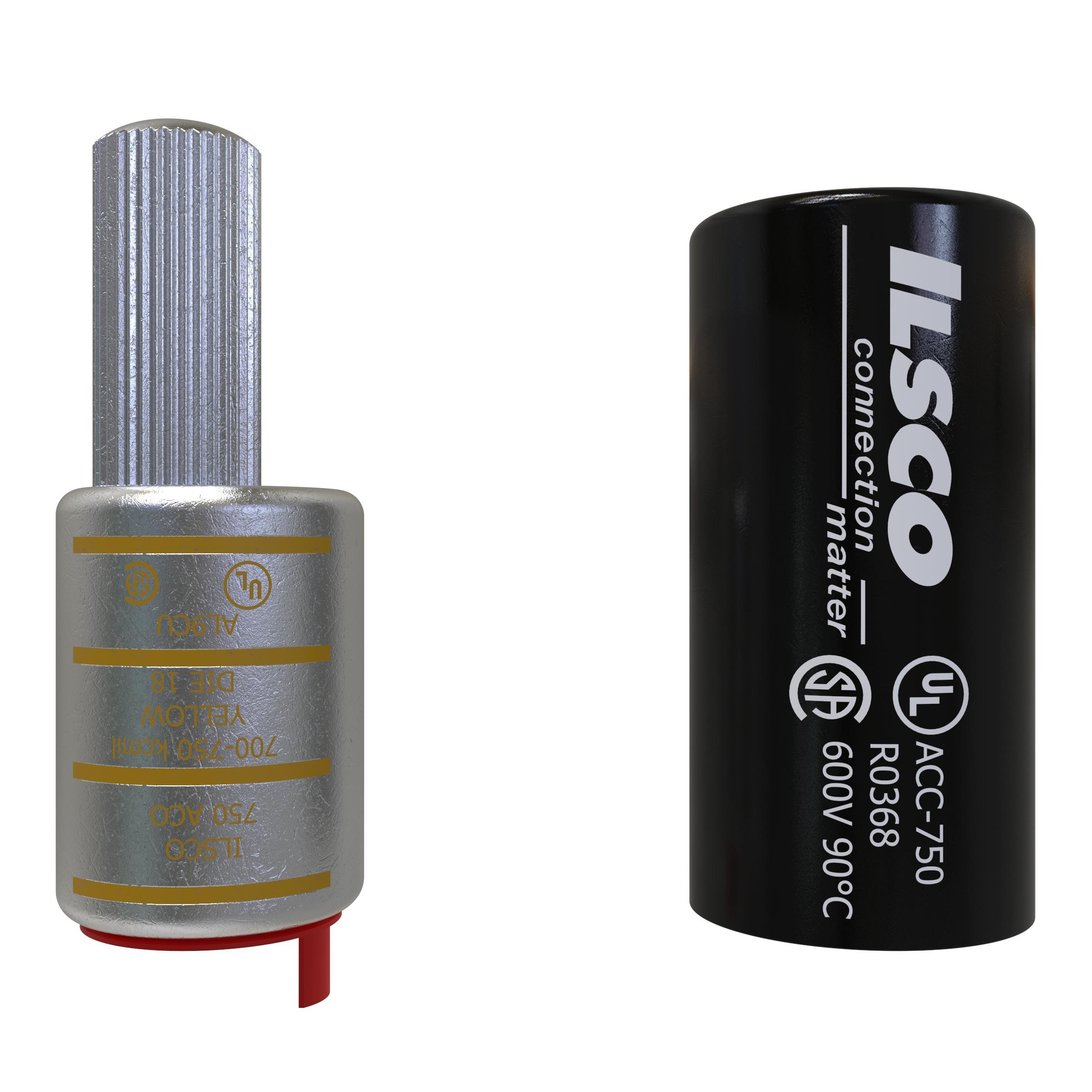

ILSCO® ClearChoice® ACO-750 Dual Rated Offset Pigtail Adapter With Insulating Cover, 700 to 750 kcmil Conductor, Die Code: 18, 0.81 in Dia x 1.76 in L Pin, Aluminum
Sku #78366900964
MFG #ACO-750
Attributes
| Type: | Dual Rated Offset |
| Conductor Size: | 700 to 750 kcmil |
| Color Code: | Yellow |
| Series: | ACO |
| Die Code: | 18 |
| Pin Diameter: | 0.81 in |
- Manufactured from high strength aluminum alloy provides maximum conductivity and excellent crimping characteristics
- Pin is knurled which permits greater surface contact and off-center allows connectors to be rotated for parallel applications
- Color coded end caps inserted in barrel which prevents foreign materials from entering the connector prior to usage and color code identifies the proper compression die
- Pre-filled with DE-OX® prevents oxide from forming
- Stranded class B and C concentric, compressed and unidirectional lay compact
- Rated for full ampacity of incoming conductor
- Clearly marked with conductor size and die index which provides easy identification and tooling recommendation
- Marked with number and location of crimps and color coded
- All supplied with insulating cover which eliminates taping, temperature range is 90 deg C and ensures reliability for aluminum or copper conductors
- Provides easy identification and tooling recommendation
- Chamfered barrel
- For terminating connector
- UL 486A-B File No. E62525|CSA File No. LR29601|ECCN EAR99|PROP65: Cancer - www.p65warnings.ca.gov
