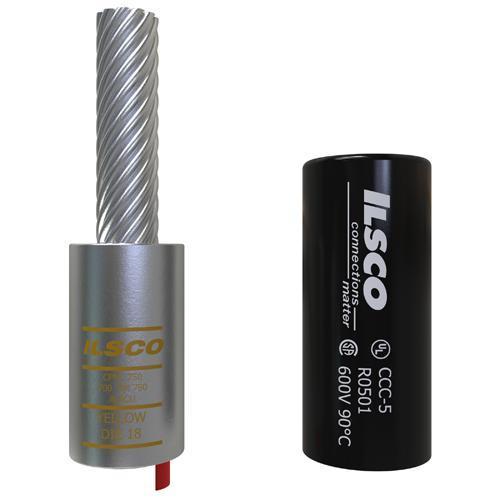

ILSCO® ClearChoice® CPML-750 Dual Rated Pigtail Adapter With Insulating Cover, 700 to 750 kcmil Conductor, Die Code: 18, 0.814 in Dia x 3 in L Pin, Aluminum/Copper
Sku #78366900872
MFG #CPML-750
Attributes
| Type: | Dual Rated |
| Conductor Size: | 700 to 750 kcmil |
| Color Code: | Yellow |
| Series: | CPM |
| Die Code: | 18 |
| Pin Diameter: | 0.814 in |
- Barrel manufactured from high strength aluminum alloy which allows insertion into equipment supplied with either copper or aluminum connectors
- Pigtail manufactured from high conductivity copper which provides maximum conductivity and excellent crimping characteristics, chamfered barrel which provides easy conductor insertion
- Color coded end caps inserted in barrel which prevents foreign materials from entering the connector prior to usage and color code identifies the proper compression die
- Pre-filled with DE-OX® prevents oxide from forming
- Stranded class B and C concentric, compressed and unidirectional lay compact
- Rated for full ampacity of incoming conductor
- Clearly marked with conductor size and die index which provides easy identification and tooling recommendation
- Marked with number and location of crimps and color coded
- All supplied with insulating cover which eliminates taping, temperature range is 90 deg C and ensures reliability for aluminum or copper conductors
- Provides easy identification and tooling recommendation
- Dieless crimp tools must not be used to crimp CPM/CPML adapters
- 90 deg C temperature rating
- Dual-rated for aluminum and copper conductor
- Chamfered barrel
- For terminating connector
- UL 486A-B File No. E62525|CSA File No. LR29601|ECCN EAR99|PROP65: Cancer - www.p65warnings.ca.gov
