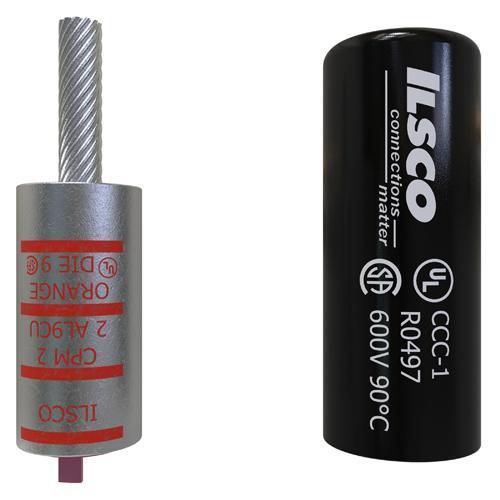

ILSCO® ClearChoice® CPM-2 Dual Rated Pigtail Adapter With Insulating Cover, 2 AWG Conductor, Die Code: 9, 0.232 in Dia x 7/8 in L Pin, Aluminum/Copper
Sku #78366900844
MFG #CPM-2
Attributes
| Type: | Dual Rated |
| Conductor Size: | 2 AWG |
| Color Code: | Orange |
| Series: | CPM |
| Die Code: | 9 |
| Pin Diameter: | 0.232 in |
- For terminating connector
- UL 486A-B File No. E62525|CSA File No. LR29601|ECCN EAR99|PROP65: Cancer - www.p65warnings.ca.gov
- Barrel manufactured from high strength aluminum alloy
- Pigtail manufactured from high conductivity copper
- Dual-rated for aluminum and copper conductor
- Stranded class B and C concentric, compressed and unidirectional lay compact
- Rated for full ampacity of incoming conductor
- Chamfered barrel and prefilled with DE-OX®
- Clearly marked with conductor size and die index
- Marked with number and location of crimps and color coded
- All supplied with insulating cover
- Dieless crimp tools must not be used to crimp CPM/CPML adapters
- 1.687 in L cover
- 90 deg C temperature rating
- 4 AWG copper pin size
- Chamfered barrel
