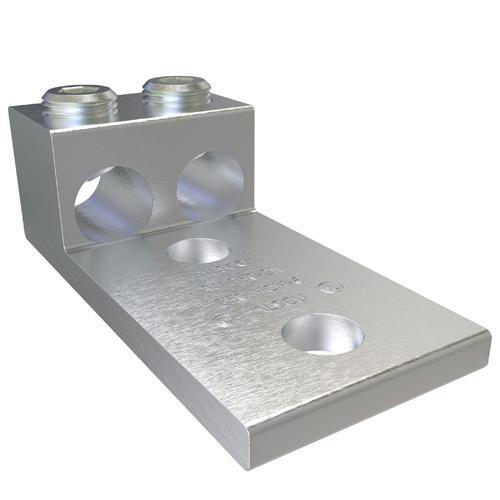

ILSCO® ClearChoice® AU-350-2N 2-Conductor Dual Rated Mechanical Terminal Lug, 6 AWG to 350 kcmil Aluminum/Copper Conductor, 1/2 in Stud, 2 Bolt Holes, 6061-T6 Aluminum Alloy
Sku #78366900574
MFG #AU-350-2N
Attributes
| Type: | 2-Conductor Dual Rated |
| Conductor Type: | Aluminum/Copper |
| Stud Size: | 1/2 in |
| Series: | AU Series |
| Conductor Size: | 6 AWG to 350 kcmil |
| Number of Bolt Holes: | 2 |
- Terminating Connector Applications
- CSA File No. LR-29601|UL 453G|UL 486A-B File No. E6207|ECCN EAR99
- Manufactured from high strength 6061-T6 aluminum alloy
- Chamfered wire entry provides ease of installation
- Suitable for use with either copper or aluminum conductors
- Mounting hole spacing from side to side, hole to hole is 7/8 in
- Electro-tin plated provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- 2-studs
- 9/16 in mounting hole
