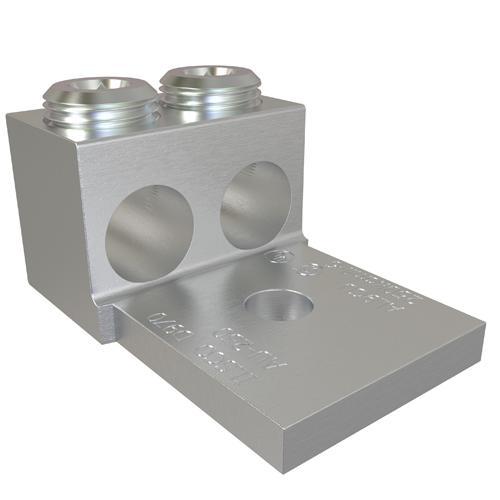

ILSCO® ClearChoice® AU-250 2-Conductor Dual Rated Mechanical Terminal Lug, 6 AWG to 250 kcmil Aluminum/Copper Conductor, 3/8 in Stud, 2 Bolt Holes, 6061-T6 Aluminum Alloy
Sku #78366900330
MFG #AU-250
Attributes
| Type: | 2-Conductor Dual Rated |
| Conductor Type: | Aluminum/Copper |
| Stud Size: | 3/8 in |
| Series: | AU Series |
| Conductor Size: | 6 AWG to 250 kcmil |
| Number of Bolt Holes: | 2 |
- Manufactured from high strength 6061-T6 aluminum alloy
- Chamfered wire entry provides ease of installation
- Suitable for use with either copper or aluminum conductors
- Mounting hole spacing from side to side, hole to hole is 7/8 in
- Electro-tin plated provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- 1-stud
- 25/64 in mounting hole
- CSA File No. LR-29601|UL 453G|UL 486A-B File No. E6207|ECCN EAR99
- Terminating Connector Applications
