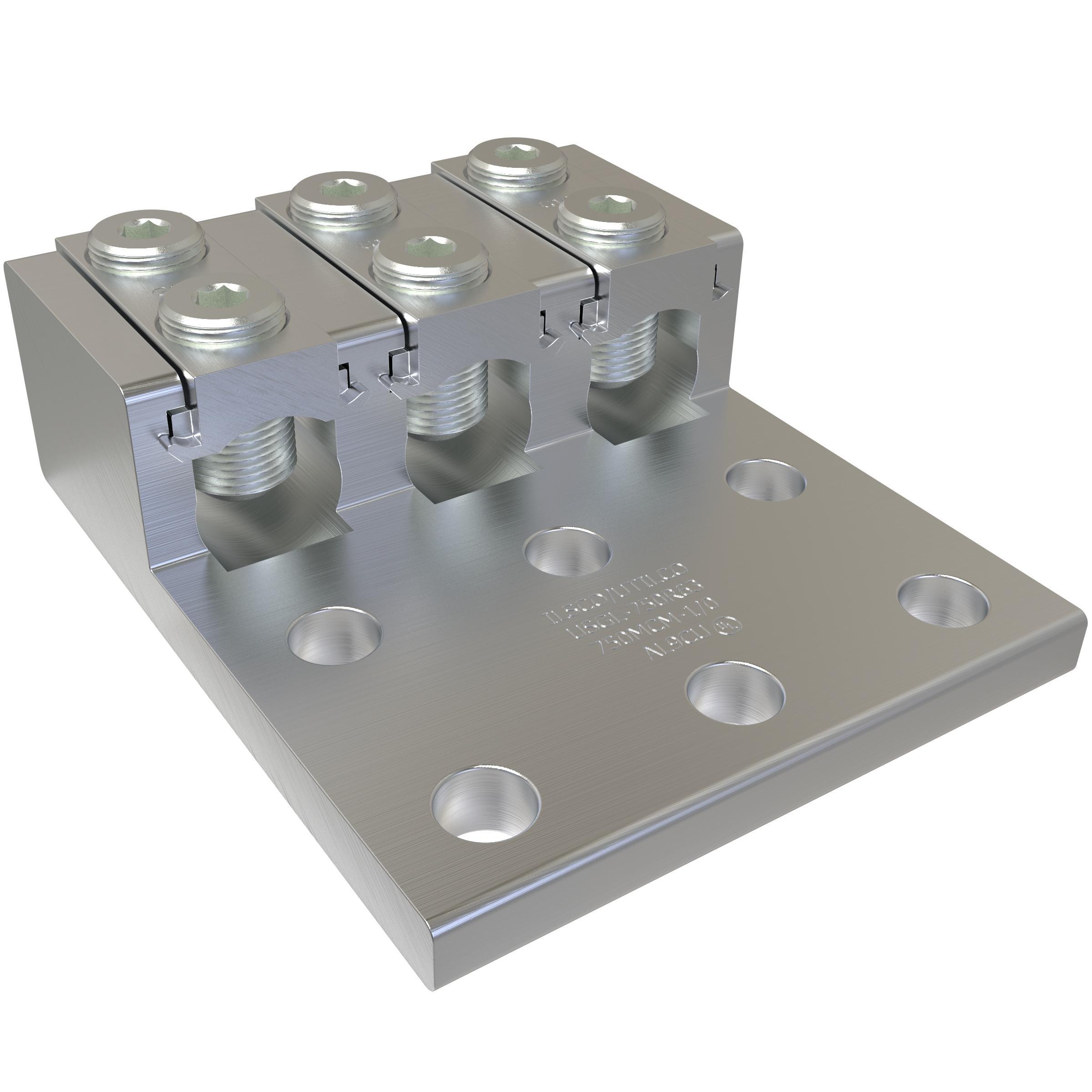

ILSCO® ClearTrax® USGL-750R63 Type USGL 1-Stage Heavy Duty Lay-In Spade Mount Terminal Lug, (3) 1/0 AWG to 750 kcmil Aluminum/Copper Conductor, 1/2 in Stud, Aluminum
Sku #78366900314
MFG #USGL-750R63
Attributes
| Type: | Type USGL 1-Stage Heavy Duty Lay-In |
| Number of Conductors: | 3 |
| Stud Size: | 1/2 in |
| Conductor Type: | Aluminum/Copper |
| Conductor Size: | 1/0 AWG to 750 kcmil |
| Voltage Rating: | 2000 V AC |
- Compact, lay-in design solves the problem of trying to bend larger size cables into place
- Fully tested to ANSI C119.4 for class "A" connectors, ensuring better heat dissipation and reliability
- Manufactured from high strength 6061-T6 aluminum for strength and conductivity, dual rated for aluminum or copper conductors
- High strength aluminum 5/16 in drive torque screw enables range taking
- Clear plated provides low contact resistance
- Designed for installation on standard NEMA mounting holes for flexibility conforms to industry standards
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- 1-3/4 in NEMA spacing on mounting holes
- 9/16 in Dia mounting hole
- UL 486A/486B/453G File No. E6207|ANSI C119.4|PROP65: it is not known to contain any chemicals associated with this regulation
- For terminating connector
