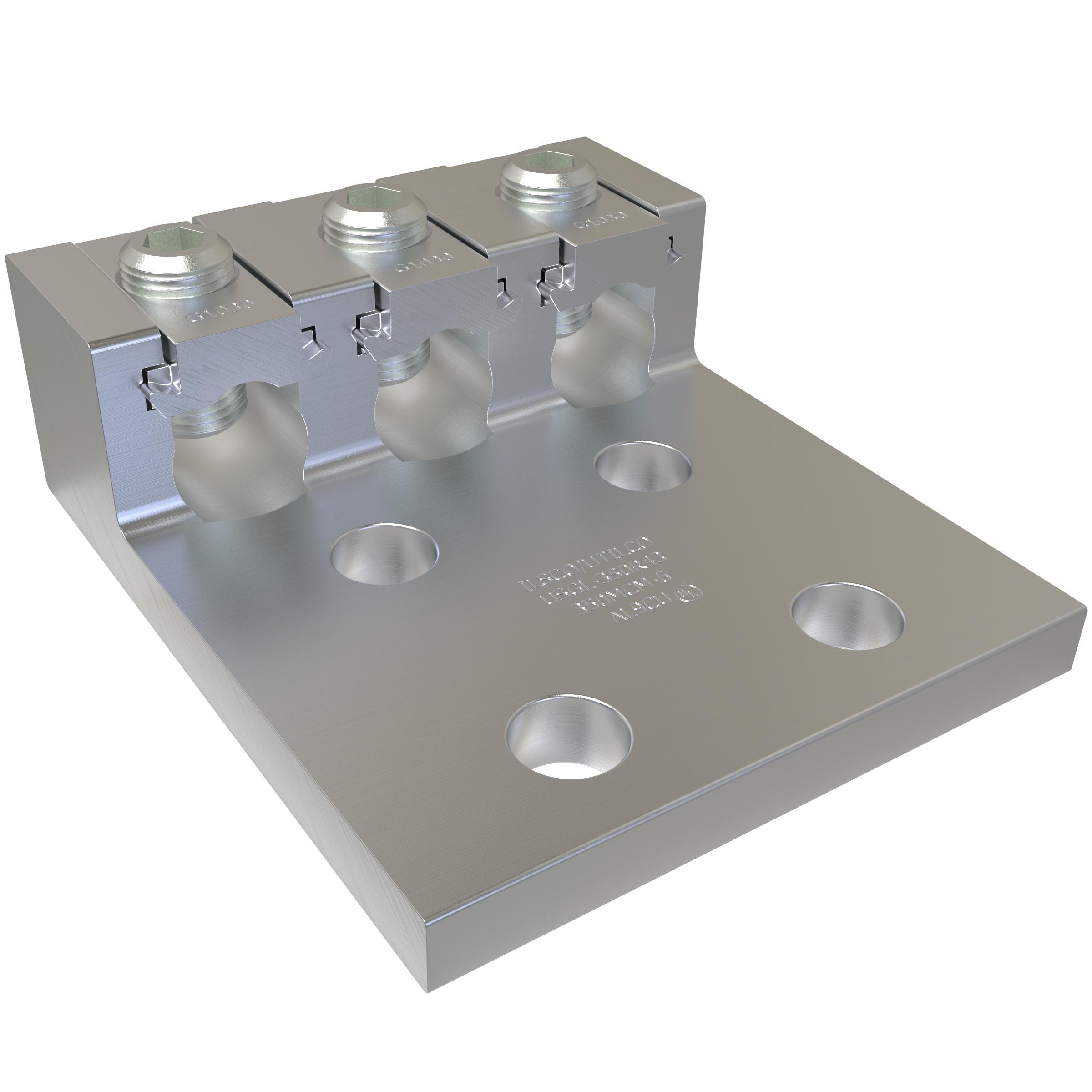

ILSCO® ClearTrax® USGL-350R43 Type USGL Heavy Duty Lay-In Connector, 6 AWG to 350 kcmil, 1/2 in Stud, 4 Bolt Holes, Aluminum
Sku #78366900302
MFG #USGL-350R43
Attributes
| Type: | Type USGL Heavy Duty |
| Stud Size: | 1/2 in |
| Voltage Rating: | 2000 V AC |
| Conductor Size: | 6 AWG to 350 kcmil |
| Number of Bolt Holes: | 4 |
| Specifications: | 3-Port, 4 Mounting Holes, 5/16 in Hex |
- Manufactured from high strength 6061-T6 aluminum for strength and conductivity dual rated for aluminum or copper conductors
- Compact, lay-in design solves the problem of trying to bend larger size cables into place
- High strength aluminum 5/16 in drive torque screw enables range taking
- Clear plated coating provides low contact resistance
- Designed for installation on standard NEMA mounting holes conforms to industry standards
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- 1-3/4 in NEMA spacing on mounting holes industry standard
- Fully tested to ANSI C119.4 for class "A" connectors, ensuring better heat dissipation and reliability
- UL 453G/486A/B/File No. E6207|ANSI C119.4
