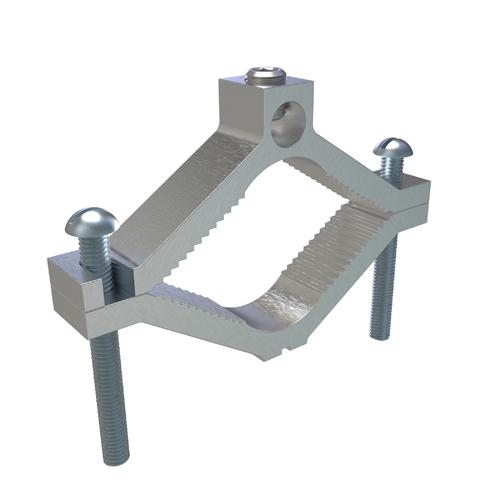

ILSCO® ClearChoice® AGC-4 Type AGC Dual Rated Grounding Clamp, 6 AWG to 250 kcmil Conductor, Aluminum
Sku #78366900064
MFG #AGC-4
Attributes
| Type: | Type AGC Dual Rated |
| Conductor Type: | Aluminum/Copper |
| Installation: | Screw Connector to Pipe/Screw Wire Connector |
| Pipe Size: | 2-1/2 to 4 in |
| Conductor Size: | 6 AWG to 250 kcmil |
| Material: | Aluminum |
- Clear plated provides low contact resistance
- Versatile - effectively grounds aluminum or copper conductors to copper water pipe, galvanized pipe or steel conduit
- Range taking - 3 sizes cover a range from 1/2 to 4 in pipe with a ground wire range of 14 AWG to 250 kcmil which reduces ventory
- SGC lay-in feature provides ease of installation for long ground wire runs
- Manufactured from high strength 6061-T6 aluminum alloy
- When using the AGC-1 with rebar the bottom half of connector must be verted
- Suitable for use with either copper or aluminum conductors
- Hex socket screw
- 2-1/2 in, 3 in, 3-1/2 in, 4 in pipe
- 600 VAC voltage rating
- For grounding connector
- UL 667P/467/E34440|PROP65: it is not known to contain any chemicals associated with this regulation
