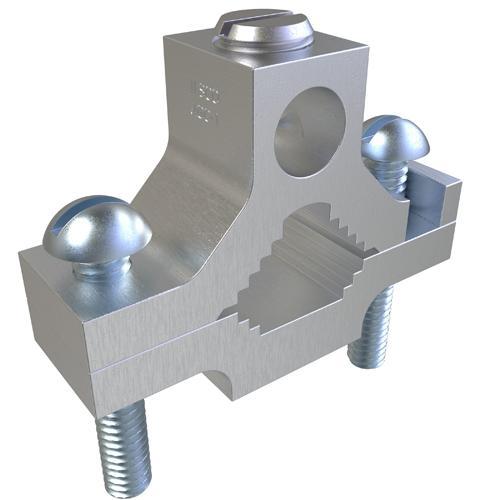

ILSCO® ClearChoice® AGC-1-B Type AGC Dual Rated Grounding Clamp, 14 to 1/0 AWG Conductor, Aluminum
Sku #78366900061
MFG #AGC-1-B
Attributes
| Type: | Type AGC Dual Rated |
| Conductor Type: | Aluminum/Copper |
| Material: | Aluminum |
| Pipe Size: | 1/2 to 1 in |
| Conductor Size: | 14 to 1/0 AWG |
| Finish: | Clear Plated |
- For grounding connector
- Clear plated provides low contact resistance
- Versatile - effectively grounds aluminum or copper conductors to copper water pipe, galvanized pipe or steel conduit
- Range taking - 3 sizes cover a range from 1/2 to 4 in pipe with a ground wire range of 14 AWG to 250 kcmil which reduces ventory
- SGC lay-in feature provides ease of installation for long ground wire runs
- Manufactured from high strength 6061-T6 aluminum alloy
- When using the AGC-1 with rebar the bottom half of connector must be verted
- Suitable for use with either copper or aluminum conductors
- 1/2 in, 5/8 in, 3/4 in rebar
- Slot screw
- 1/2 in, 3/4 in, 1 in pipe
- 600 VAC voltage rating
- UL 667P/467/E34440|PROP65: it is not known to contain any chemicals associated with this regulation
