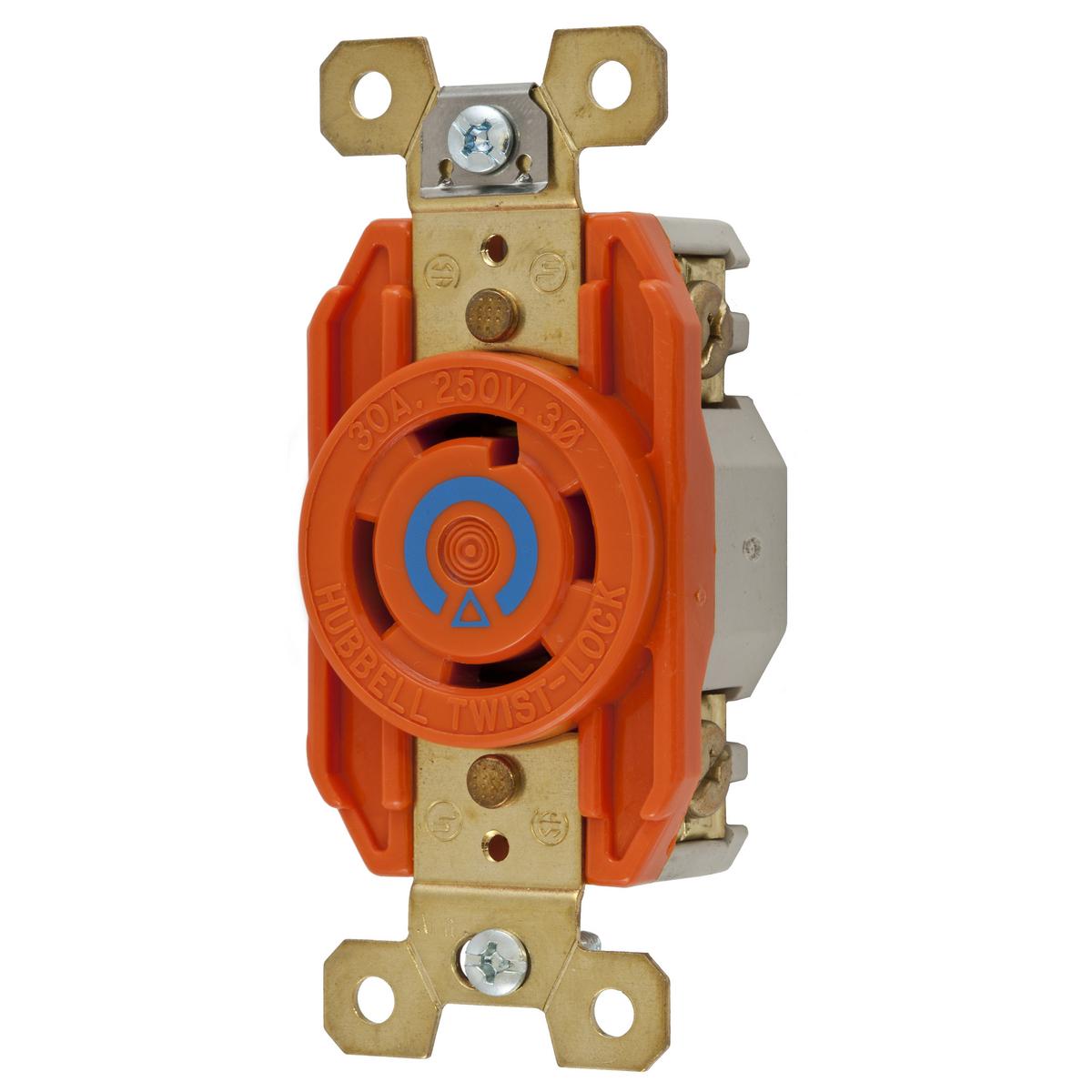

Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® IG2720 IG Series 3-Phase Heavy Duty Isolated Ground Single Standard Screw Mount Locking Receptacle, 250 V AC, 30 A, 3 Poles, 4 Wires, Orange
Sku #78358587244
MFG #IG2720
Attributes
| Type: | 3-Phase Heavy Duty Isolated Ground Single Standard Screw Mount |
| Voltage Rating: | 250 V AC |
| Horsepower: | 3 hp |
| Series: | IG Series |
| Amperage Rating: | 30 A |
| Number of Poles: | 3 |
- High-impact, abuse-resistant nylon face
- Insulation barrier construction isolates ground contact from mounting strap
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- https://youtu.be/1DnPJu3QNw0
- RoHS Compliant|Federal Specification W-C-596|UL 498|UL94 Flammability Rating|NEMA WD1/WD5|CSA C22.2 No. 42/0.6
- Indoor Applications
