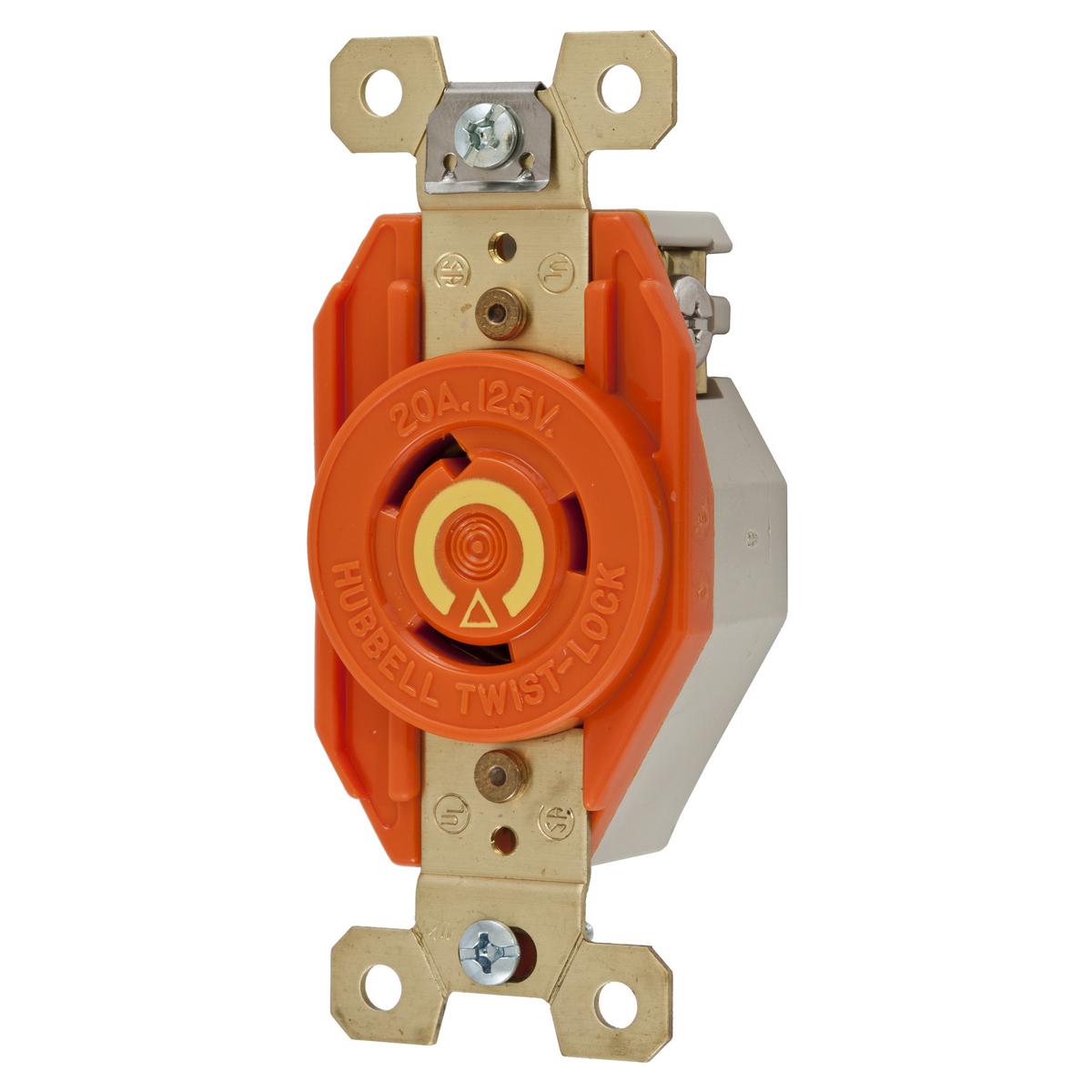

Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® IG2310 IG Series 1-Phase Heavy Duty Isolated Grounding Single Screw Mount Locking Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Orange
Sku #78358587220
MFG #IG2310
Attributes
| Type: | 1-Phase Heavy Duty Isolated Grounding Single Screw Mount |
| Voltage Rating: | 125 V AC |
| Horsepower: | 1 hp |
| Series: | IG Series |
| Amperage Rating: | 20 A |
| Number of Poles: | 2 |
- Insulation barrier construction isolates ground contact from mounting strap
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- High-impact, abuse-resistant nylon face
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- https://youtu.be/1DnPJu3QNw0
- UL94 Flammability Rating|CSA C22.2 No. 42/0.6|UL 498|Federal Specification W-C-596|NEMA WD1/WD5|RoHS Compliant
