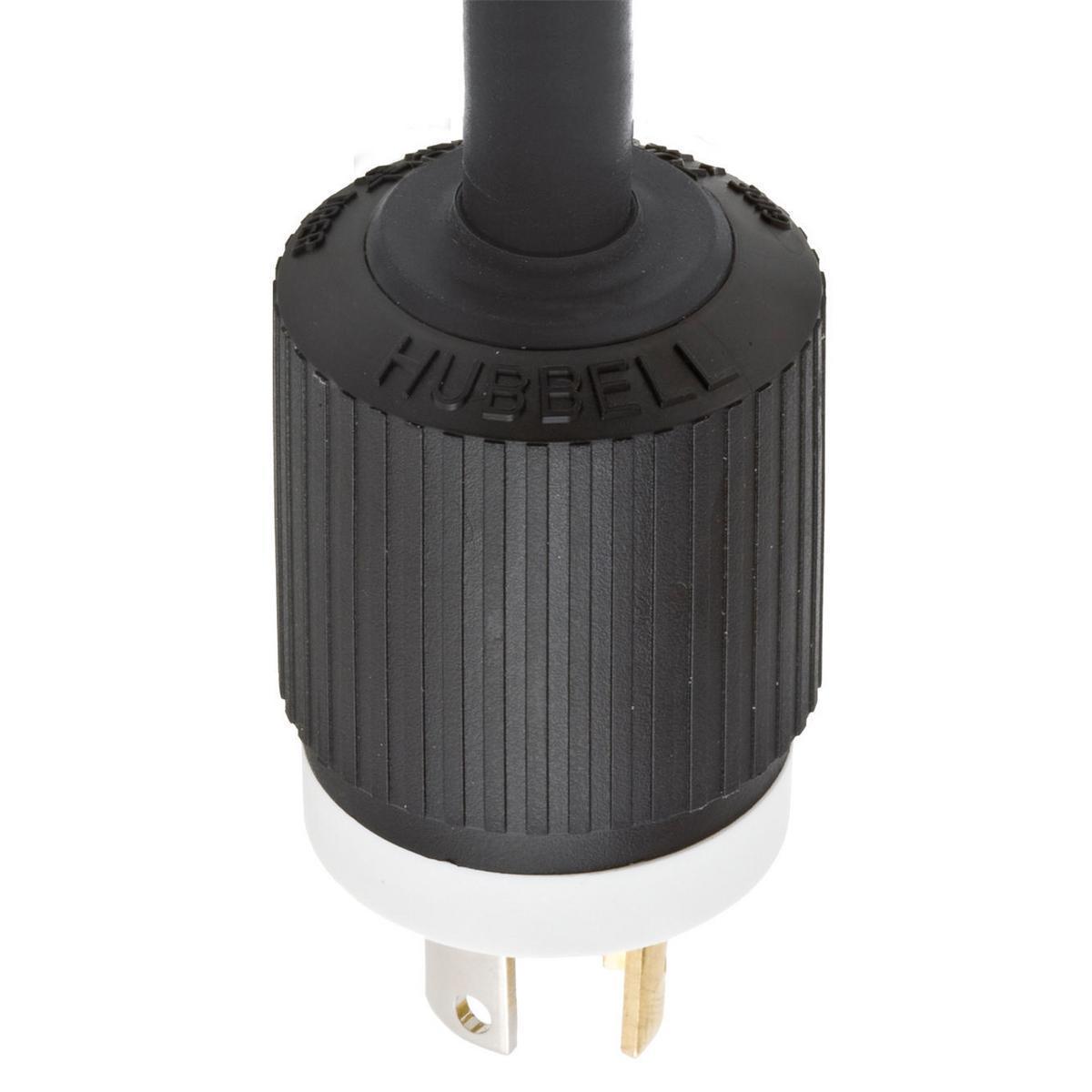

Hubbell Wiring Device-Kellems Twist-Lock® L515P 1-Phase Grounding Standard Sized Cord Mount Locking Male Plug, 125 V AC, 15 A, 2 Poles, 3 Wires, Black
Sku #78358583570
MFG #L515P
Attributes
| Type: | 1-Phase Grounding Standard Sized Cord Mount |
| Amperage Rating: | 15 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | L5-15P |
- Visible NEMA ratings, captive assembly screws
- Impact modified nylon blade/contact holder
- Brass contacts/blade
- 600 VAC/250 VDC maximum working voltage
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL 498 temperature rise
- Minimum 4.8 times rated current for 100 cycles
- Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
- 18 to 8 AWG flexible cord terminal accommodation
- Indoor dry unless protected by additional means
- 14 to 12 AWG wire
- For power connection applications
- CSA Certified|RoHS Compliant|UL Listed
