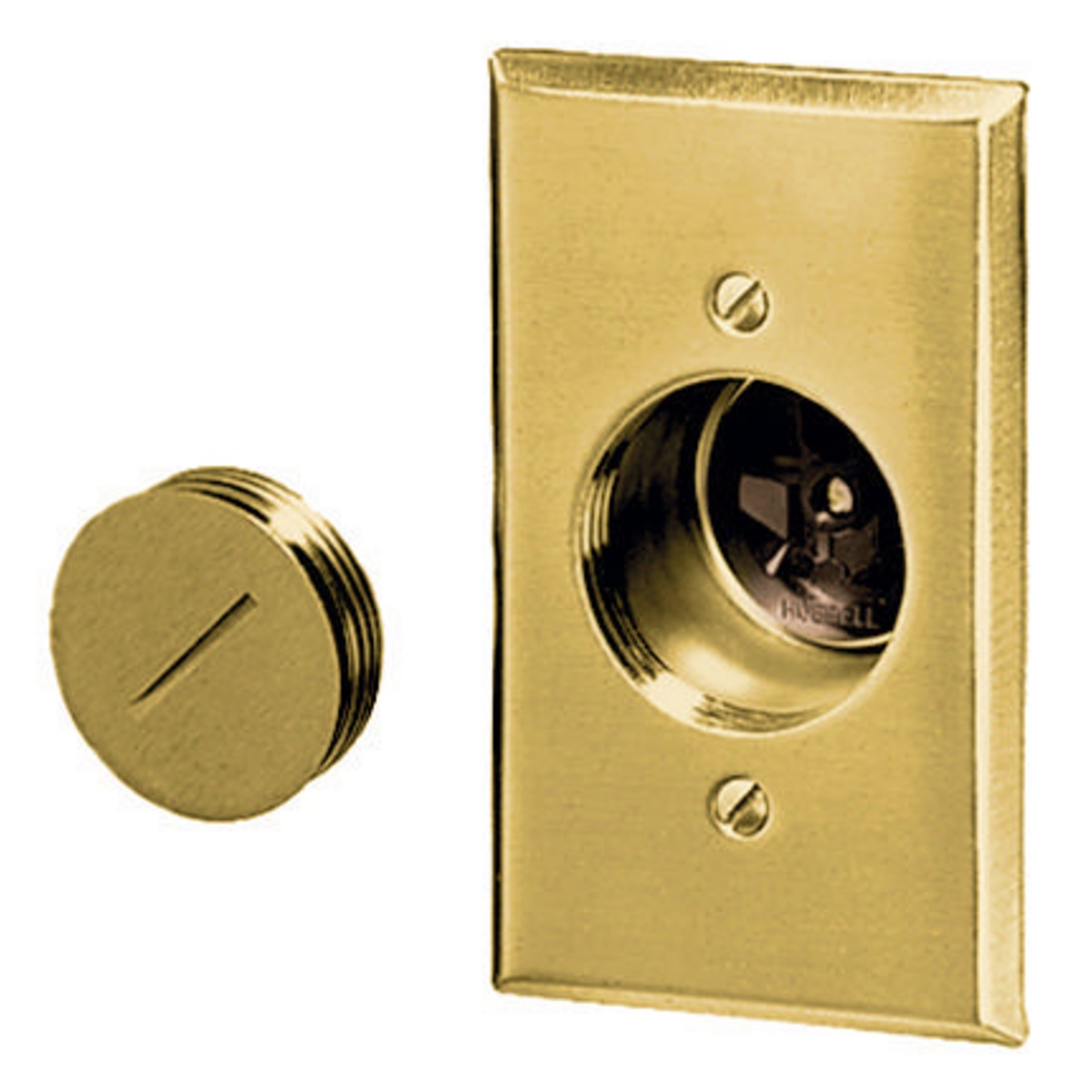

Hubbell Wiring Device-Kellems HBL6236 Grounding Single Stamped Standard Surface Mount Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Brass
Sku #78358580994
MFG #HBL6236
Attributes
| Type: | Grounding Single Stamped Standard Surface Mount |
| Amperage Rating: | 15 A |
| Number of Poles: | 2 |
| Voltage Rating: | 125 V AC |
| Horsepower: | 1 hp |
| Number of Wires: | 3 |
- Wood Floors Applications
- #8-32 brass multiple drive (green) ground screw
- Stainless steel mounting screw
- Withstands 2000 VAC minimum dielectric voltage
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
- With 0.06 in brass plate and blank flush plug and mounting box
- UL 514|UL 498 File No. E2186|NEMA WD6|CSA C22.2 No. 42 File No. 285
Hubbell Wiring Device-KellemsHubbell Wiring Device-Kellems HBL6236 Grounding Single Stamped Standard Surface Mount Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Brass
SKU #78358580994
MFG #HBL6236
