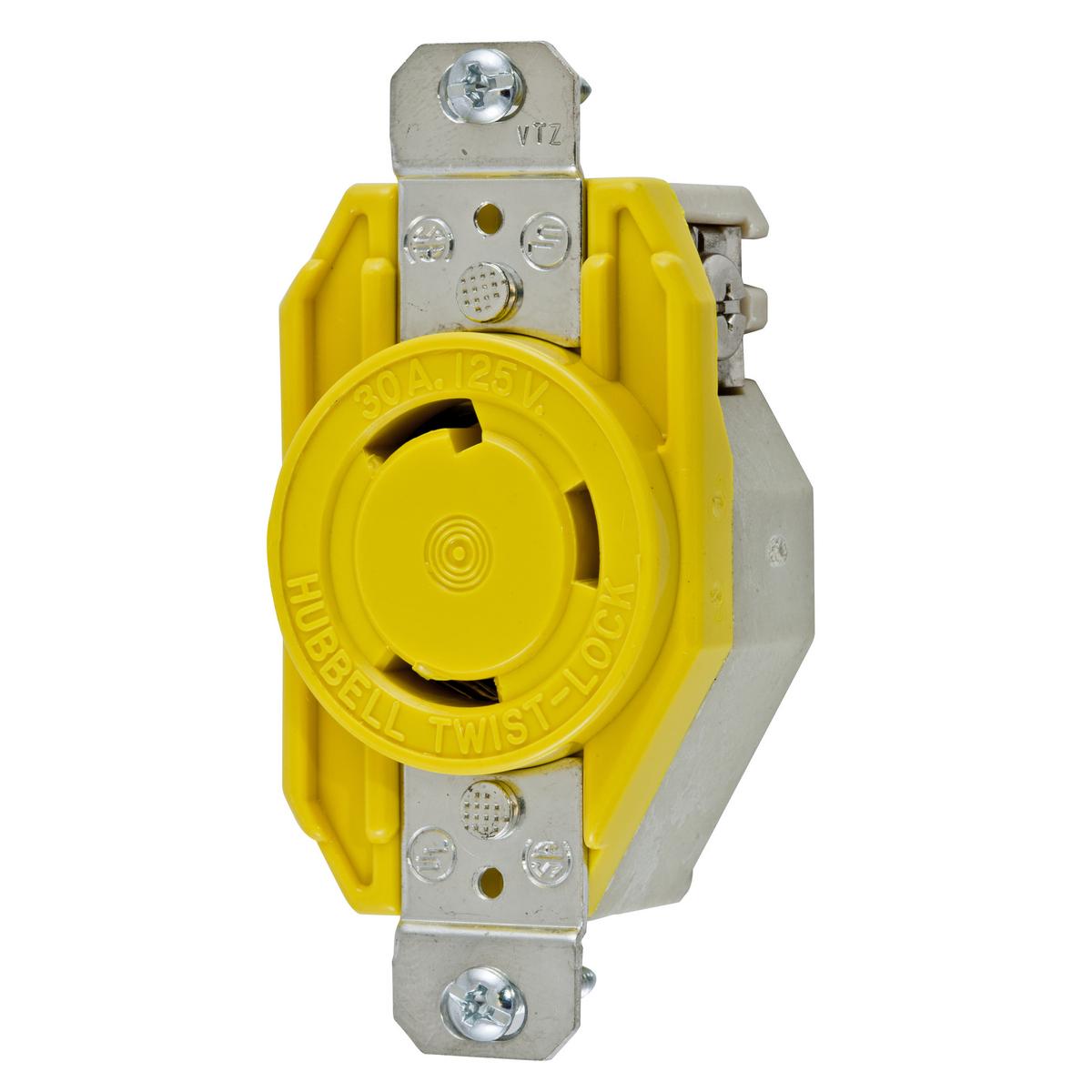

Hubbell Wiring Device-Kellems Twist-Lock® HBL26CM10 1-Phase Corrosion Resistant Grounding Single Standard Screw Mount Locking Receptacle, 125 V AC, 30 A, 2 Poles, 3 Wires, Yellow
Sku #78358580819
MFG #HBL26CM10
Attributes
| Type: | 1-Phase Corrosion Resistant Grounding Single Standard Screw Mount |
| Amperage Rating: | 30 A |
| Number of Poles: | 2 |
| Voltage Rating: | 125 V AC |
| Horsepower: | 2 hp |
| Number of Wires: | 3 |
- Dry Locations and Indoor Applications
- RoHS Compliant|UL 94/498|Federal Specification W-C-596|CSA C22.2 No. 0.17/42|NEMA WD1/WD5|UL94 Flammability Rating
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Nickel plated brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Face color coding by voltage facilitates locating and mating of proper devices
- https://youtu.be/1DnPJu3QNw0
